ASP Calibration Procedures

  1. Connect self - diagnosis connector (16 pins) located in the lower of driver side crash pad to self - diagnosis device.
  2. Turn the self - diagnosis device after key is ON.
  3. Turn the steering wheel to straight ahead position.
  4. After Selecting the "vehicle model" and "system", select the "ASP Calibration" on GDS vehicle selection screen.

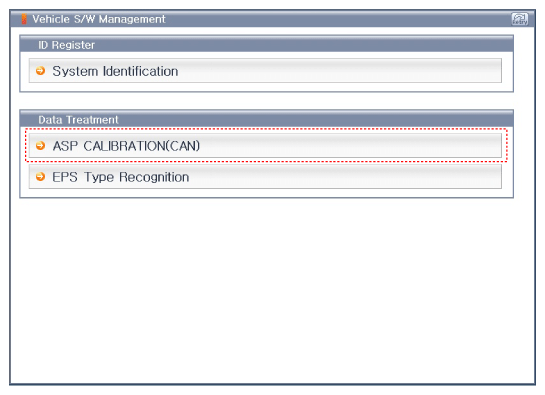

    Fig 1: Screen Display - ASP Calibration (1 Of 2)
    G12056209Courtesy of HYUNDAI MOTOR AMERICA

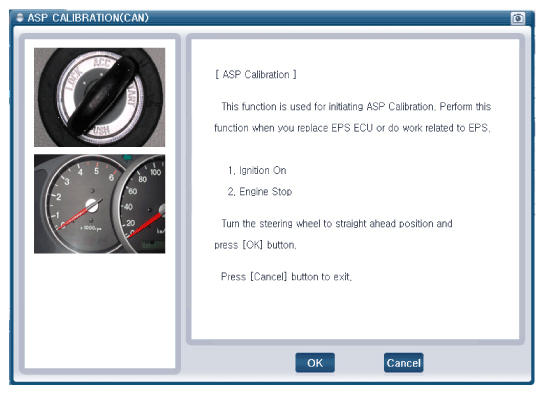

    Fig 2: Screen Display - ASP Calibration (2 Of 2)
    G12056210Courtesy of HYUNDAI MOTOR AMERICA
