Neutralization Status Check

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

After IG ON, select the "Neutralization Mode".

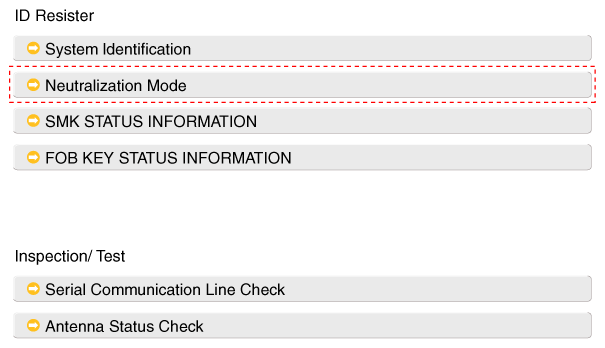

Fig 1: Scantool Display - ID Resister And Neutralization Mode

G12054443

Courtesy of HYUNDAI MOTOR AMERICA

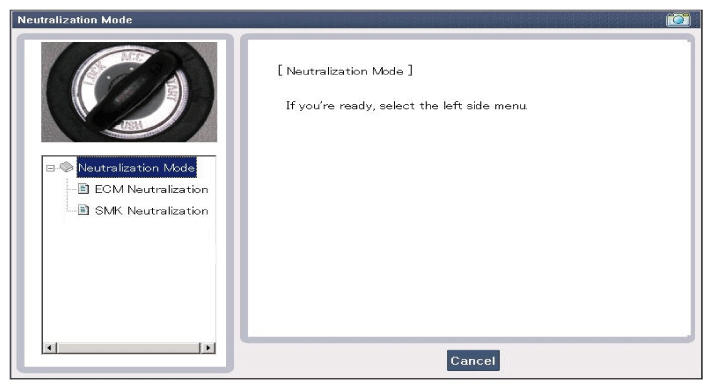

Fig 2: Scantool Display - Neutralization Mode

G12054444

Courtesy of HYUNDAI MOTOR AMERICA

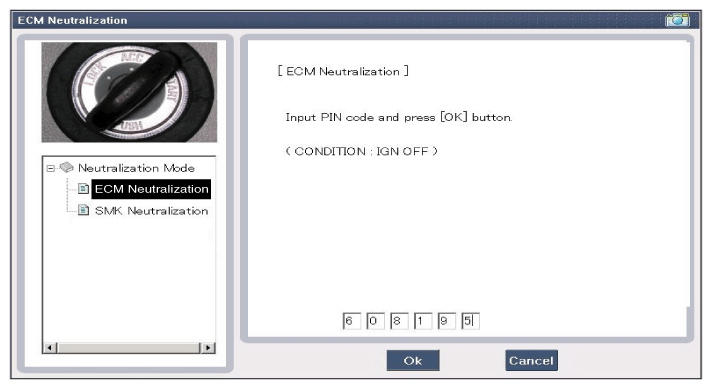

Fig 3: Scantool Display - ECM Neutralization

G12054445

Courtesy of HYUNDAI MOTOR AMERICA

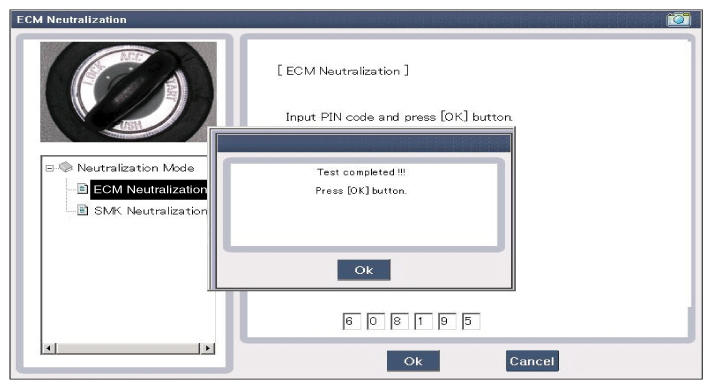

Fig 4: Scantool Display - ECM Neutralization (Test Completed)

G12054446

Courtesy of HYUNDAI MOTOR AMERICA

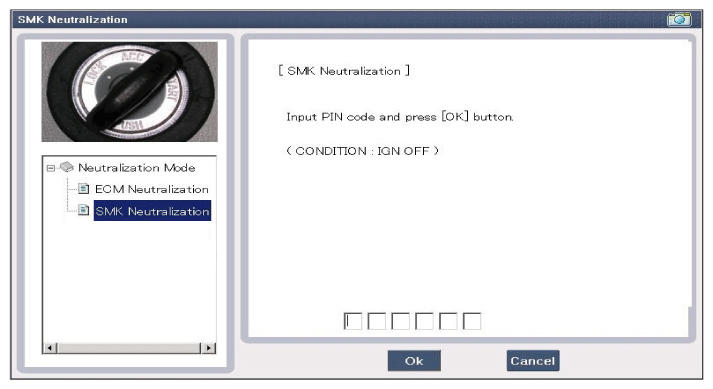

Fig 5: Scantool Display - SMK Neutralization

G12054447

Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Scantool Display - SMK Neutralization (Pin Code)

G12054448

Courtesy of HYUNDAI MOTOR AMERICA

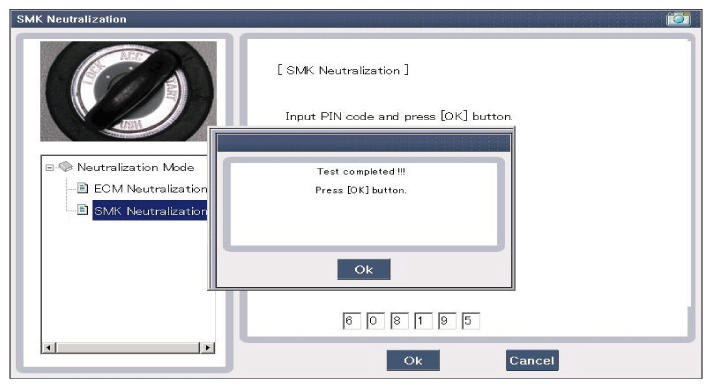

Fig 7: Scantool Display - SMK Neutralization (Test Completed)

G12054449

Courtesy of HYUNDAI MOTOR AMERICA

INPUT SWITCH LIST

No	Item Name	Unit
1	SSB SW1	-
2	SSB SW2	-
3	ACC	-
4	IGN1	-
5	IGN2	-
6	ACC/IGN1/IGN2 Relay	-
7	G ear "P" Position (A/T) Clutch SW (M/T)	-
8	Brake SW	-
9	FL Door Lock Button	-
10	FR Door Lock Button	-
11	Liftgate Release Button	-
12	Battery Voltage	-
13	Wheel Speed	-

ACTUATOR LIST

No	Item Name	Condition
1	Immobilizer indicator Lamp (Cluster)	Ignition switch ON Engine off
2	External Buzzer	Ignition switch ON Engine off
3	Interior Antenna 1 Active	Ignition switch ON Engine off
4	Interior Antenna 2 Active	Ignition switch ON Engine off
5	Interior Antenna 3 Active	Ignition switch ON Engine off
6	Bumper/trunk Antenna Active	Ignition switch ON Engine off
7	DRV_DR Antenna Active	Ignition switch ON Engine off
8	AST_DR Antenna Active	Ignition switch ON Engine off
9	BBS Illumination (OFF/ACC/ON)	Ignition switch ON Engine off
10	ACC/IGN1/IGN2 Relay	Ignition switch ON Engine off
