Components And Components Location: Components

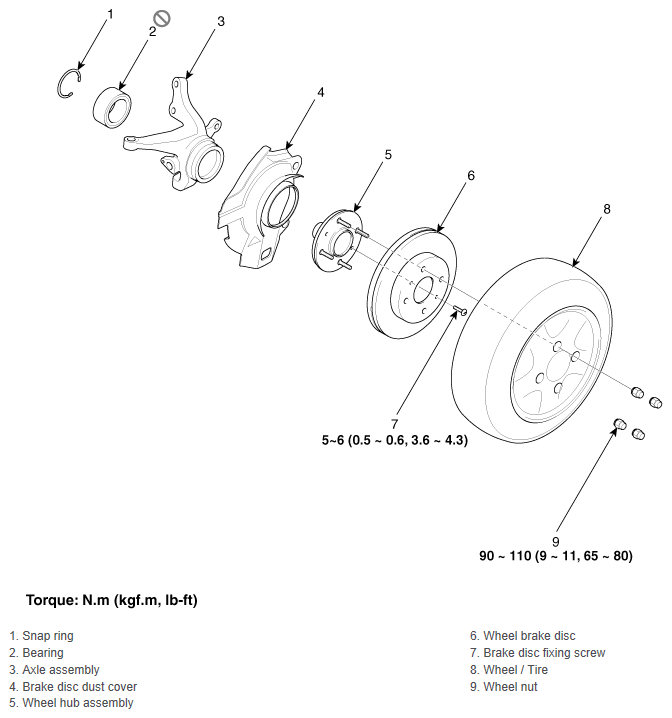

Fig 1: Exploded View Of Front Hub/Knuckle Components With Torque Specification

G12017794

Courtesy of HYUNDAI MOTOR AMERICA
