DTC C1260: Steering Angle Sensor Circuit-Signal
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data

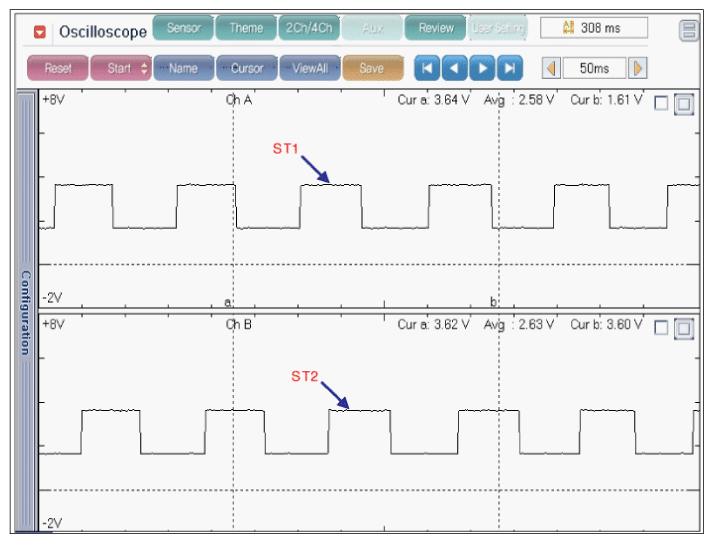

Fig 1: Scantool Display - Normal Waveform Of Steering Angle Sensor With Turning Left After ENG ON
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Scantool Display - Normal Waveform Of Steering Angle Sensor With Turning Right After ENG ON
Courtesy of HYUNDAI MOTOR AMERICA

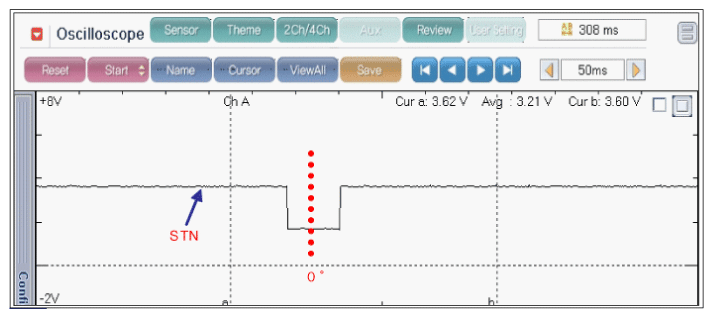

Fig 3: Scantool Display - Normal Waveform Of Steering Angle Sensor Being Center Position After ENG ON
Courtesy of HYUNDAI MOTOR AMERICA
* "LOW": approx 1.5V, "HIGH": approx 3.5V.
