Driver Power Window Switch (1)

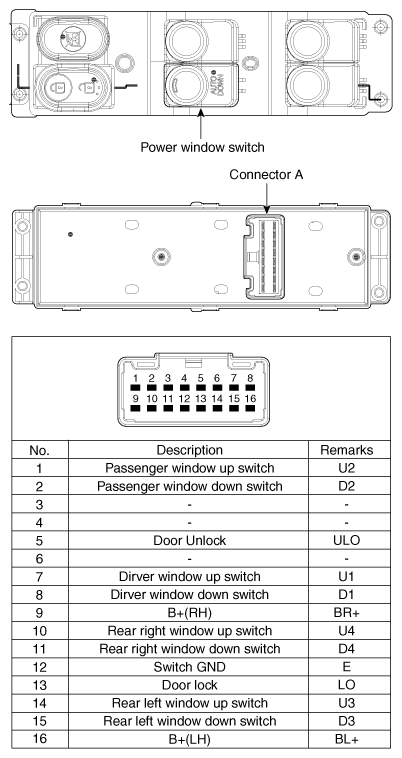

Fig 1: Driver Power Window Switch Connector End View & Terminal Identifications

G12019261

Courtesy of HYUNDAI MOTOR AMERICA
