Circuit Diagram

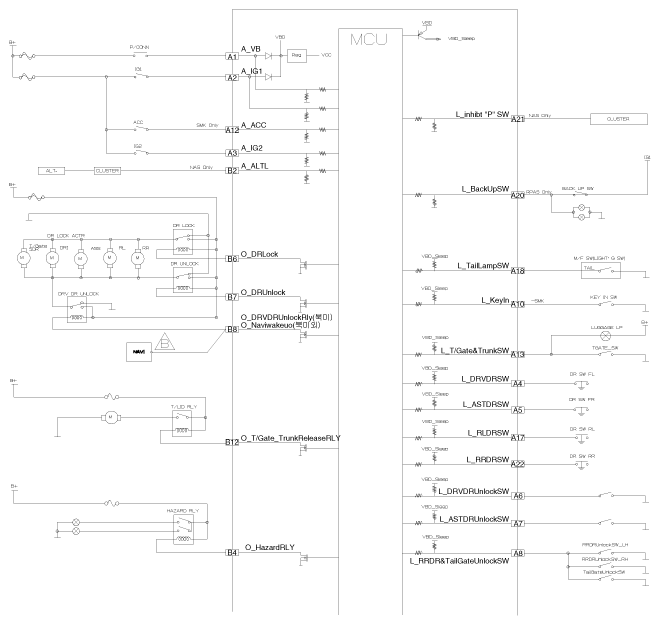

Fig 1: BCM Diagram (1 Of 2)

G12019169

Courtesy of HYUNDAI MOTOR AMERICA

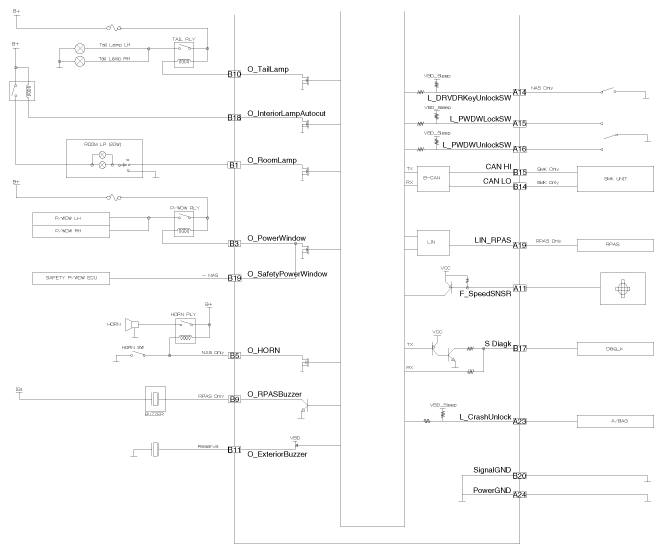

Fig 2: BCM Diagram (2 Of 2)

G12019170

Courtesy of HYUNDAI MOTOR AMERICA
