Inspection Flow

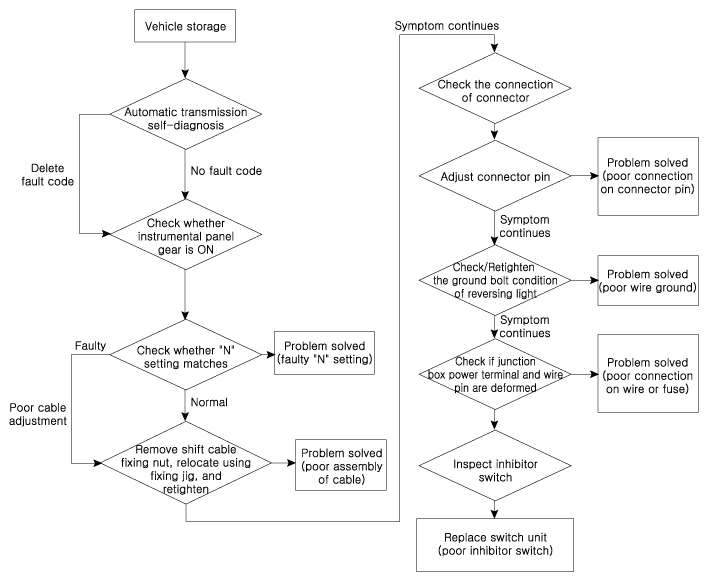

Fig 1: Vehicle Storage Inspection Flow Chart
G10607345Courtesy of HYUNDAI MOTOR AMERICA
