Component Location

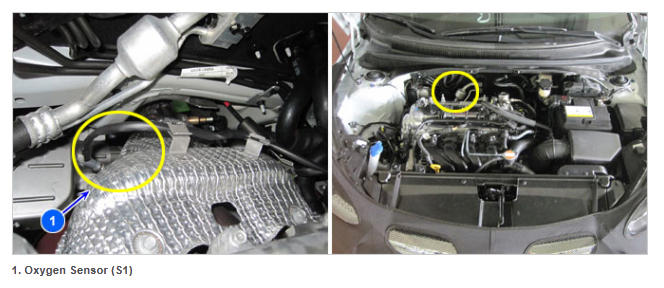

Fig 1: Identifying O2 Sensor (Bank 1 Sensor 1)
G10610170Courtesy of HYUNDAI MOTOR AMERICA
