Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC)
  2. IG KEY "ON" & ENG "OFF".
  3. Monitor the "IATS" parameters on the "Current Data"  with GDS.

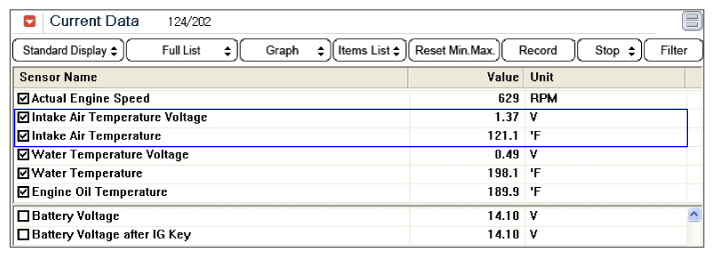

    Fig 1: Monitoring IATS Parameters On Current Data With GDS
    G10609895Courtesy of HYUNDAI MOTOR AMERICA
  4. Is the "IATS" parameter displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
