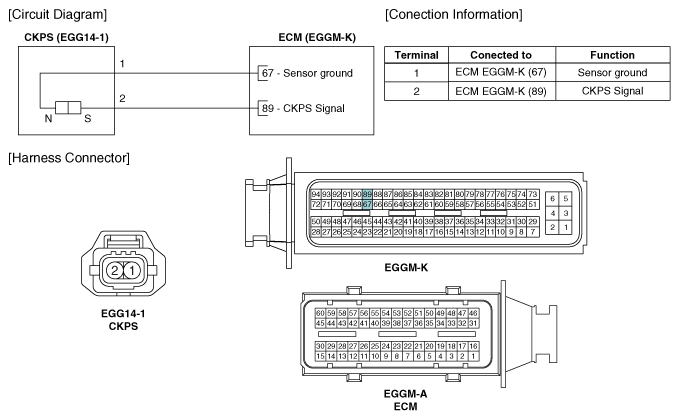

Home >> Hyundai >> 2016 >> Veloster Base, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L GDI >> Crankshaft Position Sensor (CKPS) >> Schematic Diagrams >> Circuit Diagram >> [Non - ISG]
