Rear Power Window Switch

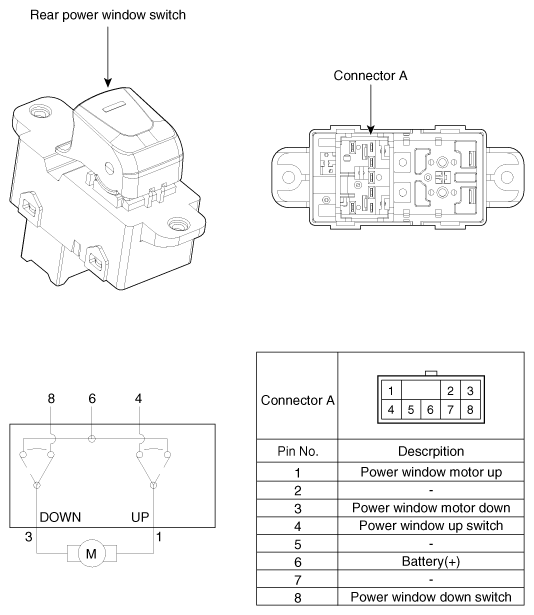

Fig 1: Rear Power Window Switch With Connector End View

G10605919

Courtesy of HYUNDAI MOTOR AMERICA
