Interior C

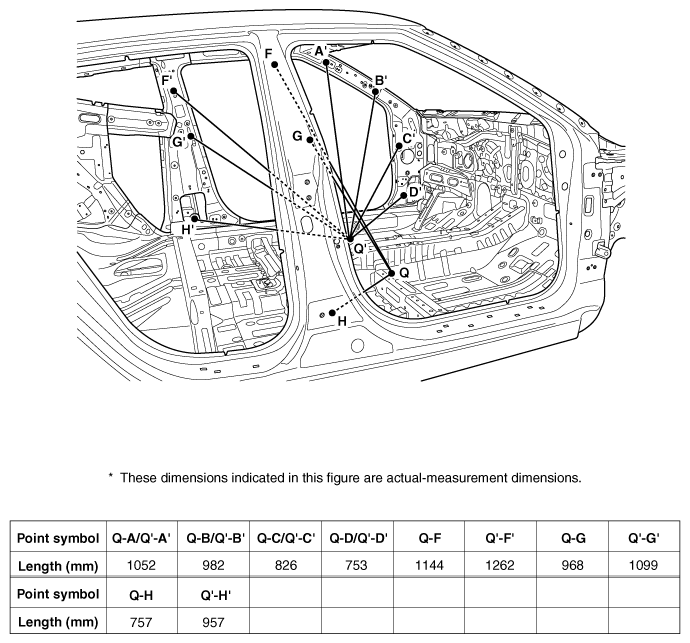

Fig 1: Identifying Interior C Dimensions (1 Of 2)

G10605230

Courtesy of HYUNDAI MOTOR AMERICA

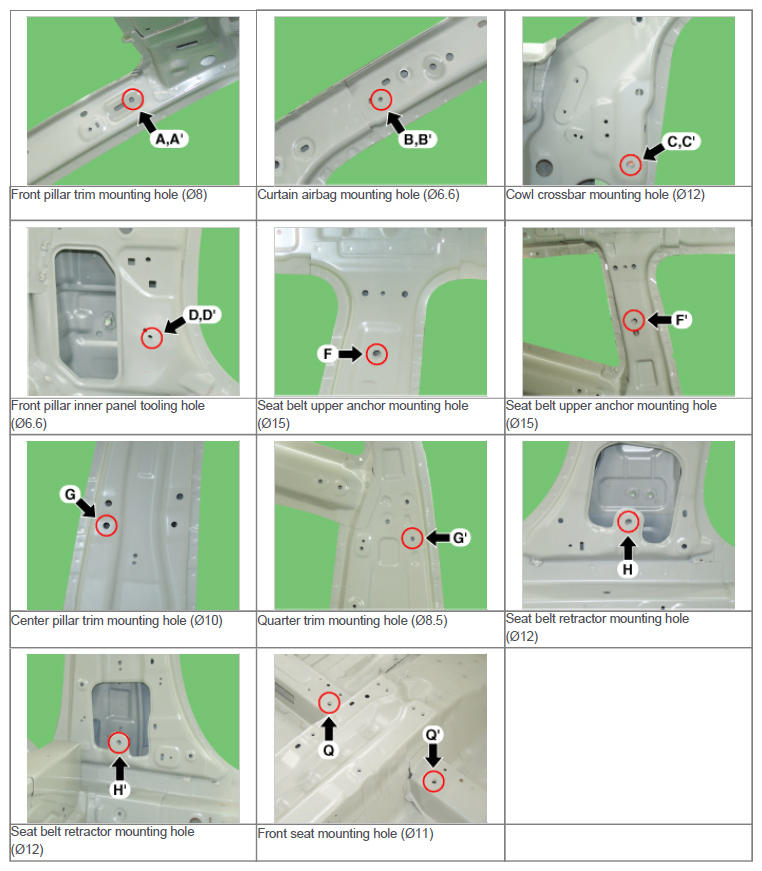

Fig 2: Identifying Interior C Dimensions (2 Of 2)

G10605231

Courtesy of HYUNDAI MOTOR AMERICA
