Component Location

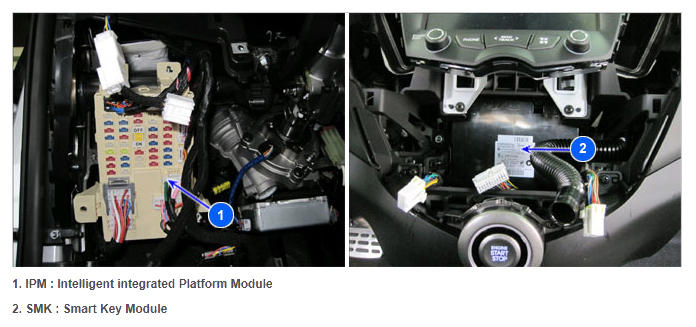

Fig 1: Intelligent Integrated Platform Module (IPM) And Smart Key Module (SMK) Components Location
G10608422Courtesy of HYUNDAI MOTOR AMERICA
