Transmitter Code Registration (using GDS)

Connect the DLC cable of GDS to the Data Link Connector (16 pins) in the Driver Side Crash Pad Lower Panel, turn the power On GDS.

Fig 1: Driver Side Crash Pad Lower Panel Data Link Connector (16 Pins)
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then select "CODE SAVING"

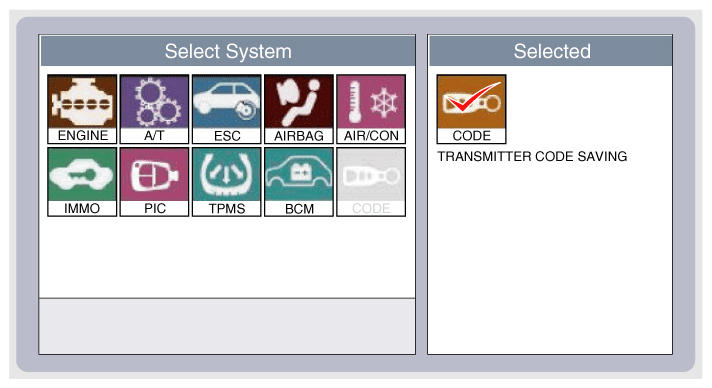

Fig 2: Select System - Screen Display
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "CODE SAVING" menu, button "ENTER" Key, the screen will be displayed as such.

Fig 3: Code Saving - Screen Display (1 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA
After removing the Ignition Key from Key Cylinder, push "ENTER" Key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

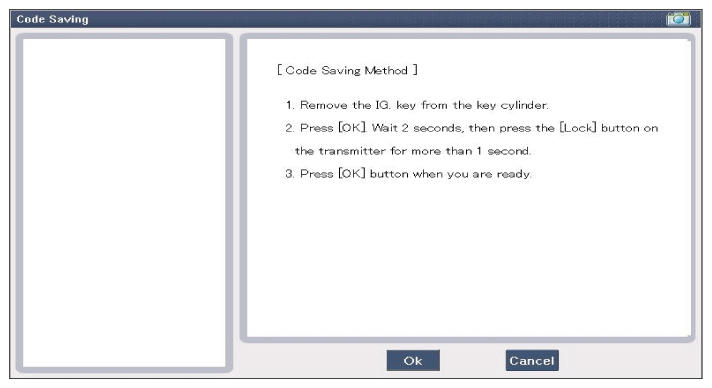

Fig 4: Code Saving - Screen Display (2 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA

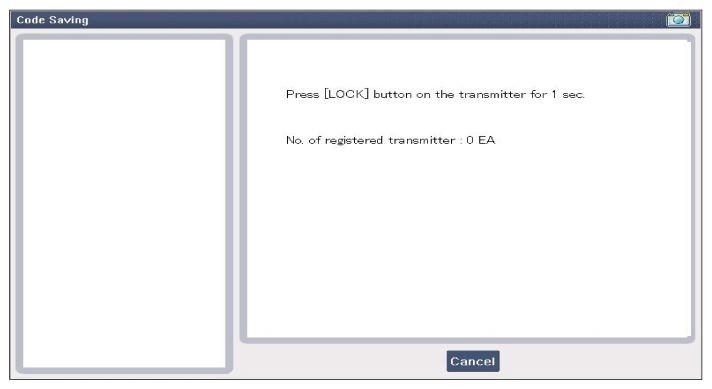

Fig 5: Code Saving - Screen Display (3 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA

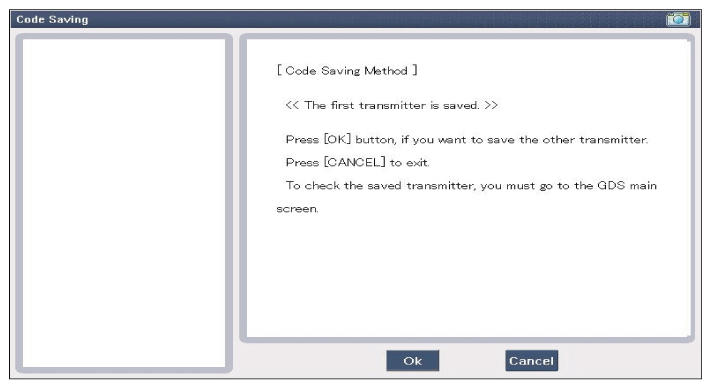

Fig 6: Code Saving - Screen Display (4 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA

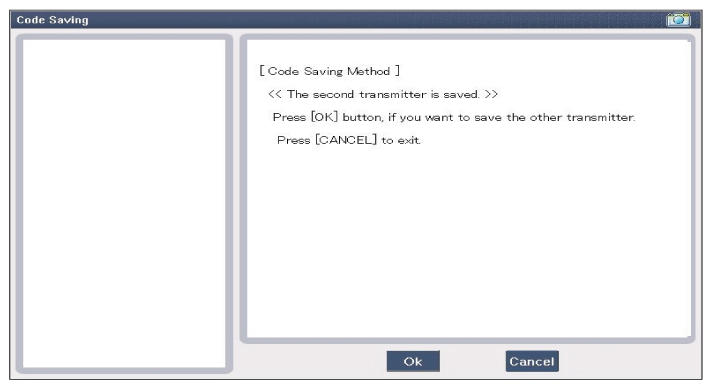

Fig 7: Code Saving - Screen Display (5 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 8: Code Saving - Screen Display (6 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA

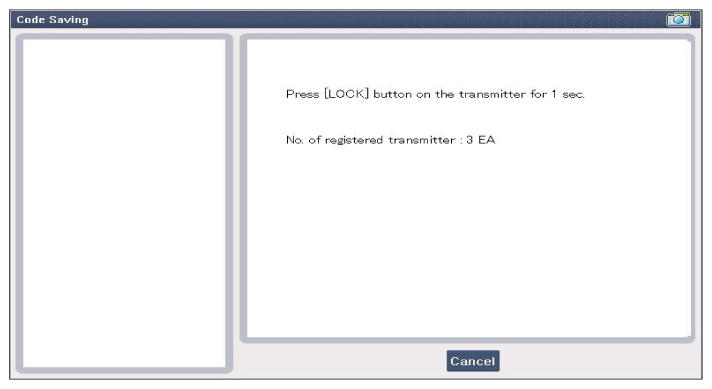

Fig 9: Code Saving - Screen Display (7 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 10: Code Saving - Screen Display (8 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA

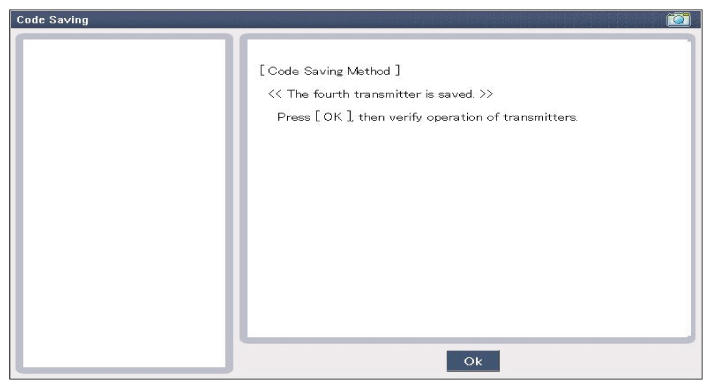

Fig 11: Code Saving - Screen Display (9 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA

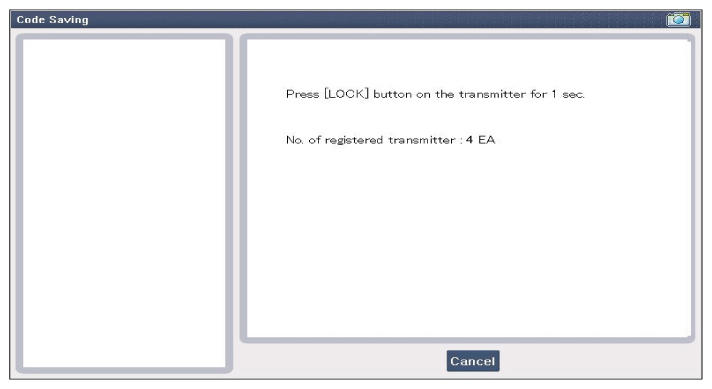

Fig 12: Code Saving - Screen Display(10 Of 10)
Courtesy of HYUNDAI MOTOR AMERICA
