Signal Waveform & Data

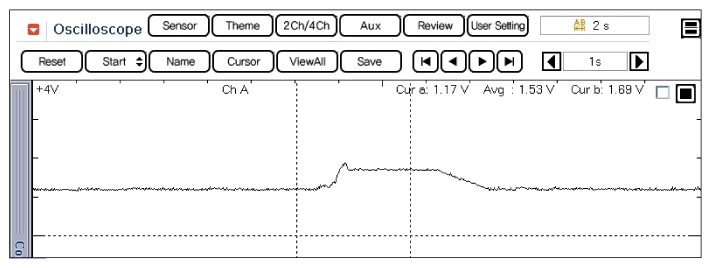

Fig 1: Screen Display - Normal Waveform Of FPS At Acceleration
G10609957Courtesy of HYUNDAI MOTOR AMERICA
