Assist Power Window Switch

[Assist Power Window Switch (Manual)]

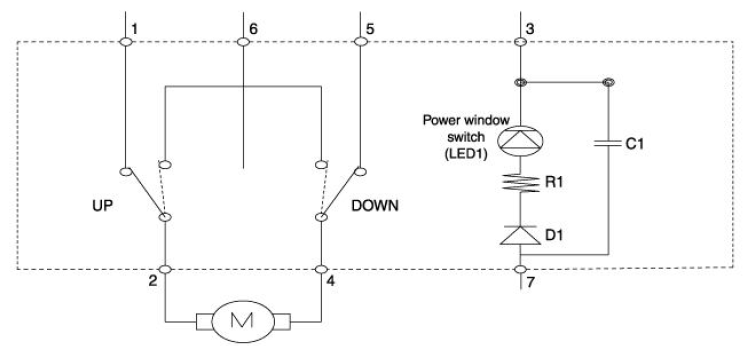

Fig 1: Assist Power Window Switch Circuit Diagram (Manual)
G11670045Courtesy of HYUNDAI MOTOR AMERICA

[Assist Power Window Switch (Manual + Door Lock)]

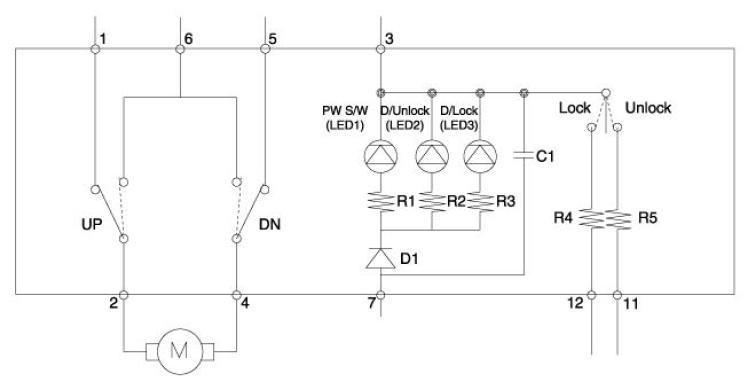

Fig 2: Assist Power Window Switch Circuit Diagram (Manual And Door Lock)
G11670046Courtesy of HYUNDAI MOTOR AMERICA
