Teaching Mode Procedure Description (Step by Step)

Objective: Key teaching procedure at service station

Initial state

  1. SMK replacement: SMK is not Learnt and SMART FOB are already Learnt with same PIN code
  2. Additional or new keys teaching: SMK are already Learnt with same PIN code

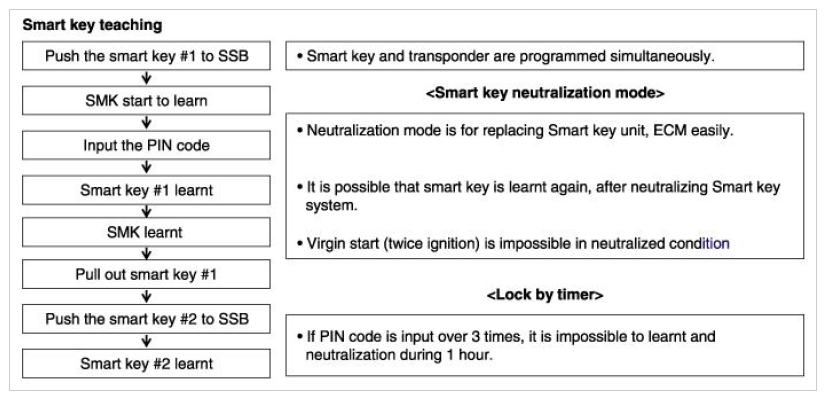

Fig 1: Teaching Mode Procedure Flow Chart
G11669783Courtesy of HYUNDAI MOTOR AMERICA
