Circuit Diagram

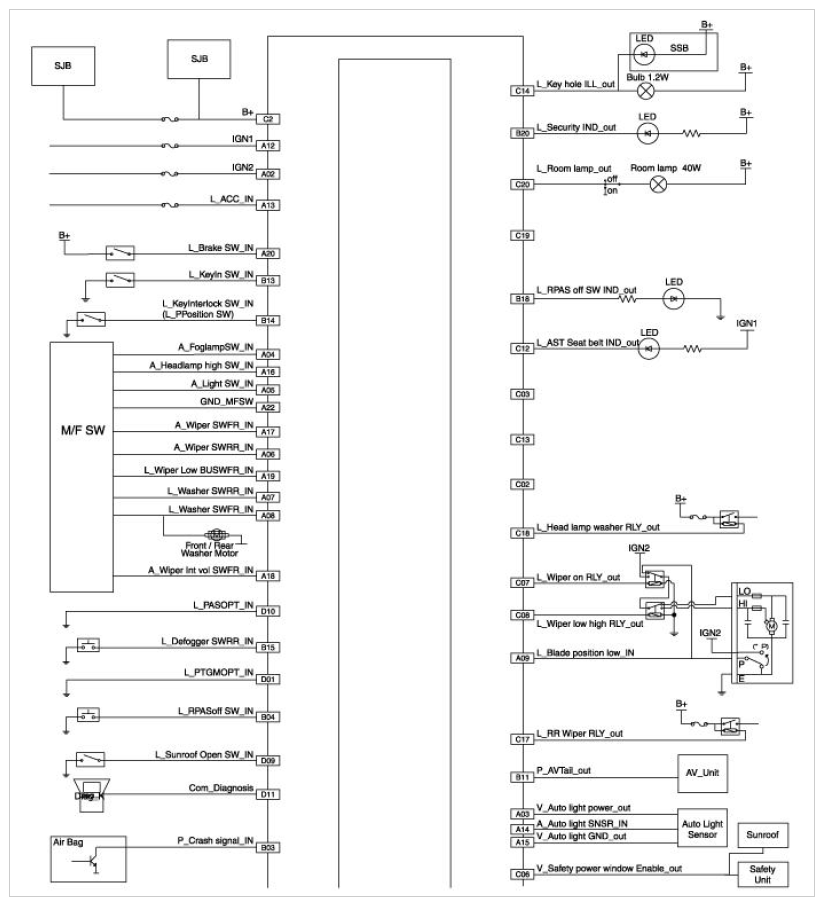

Fig 1: Body Control Module Schematic Diagrams (1 Of 2)

G11669848

Courtesy of HYUNDAI MOTOR AMERICA

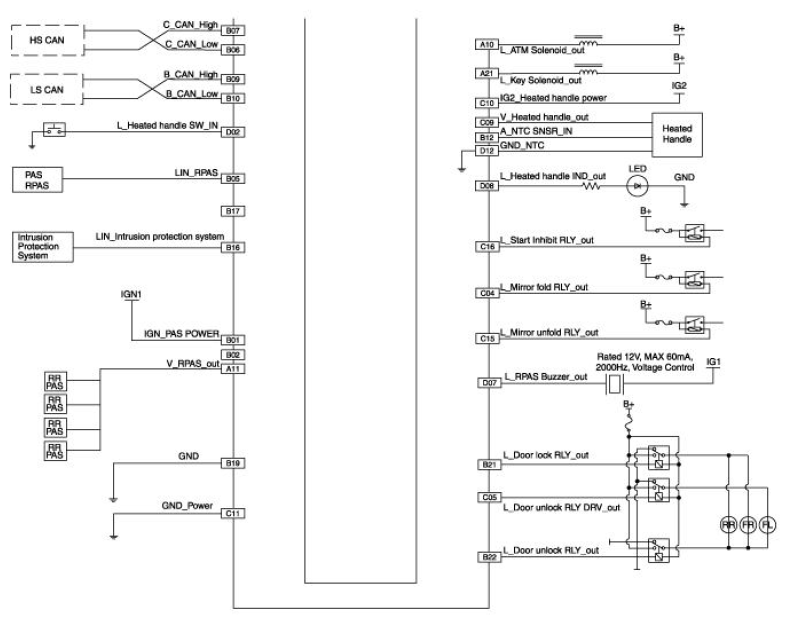

Fig 2: Body Control Module Schematic Diagrams (2 Of 2)

G11669849

Courtesy of HYUNDAI MOTOR AMERICA
