Control System Logic

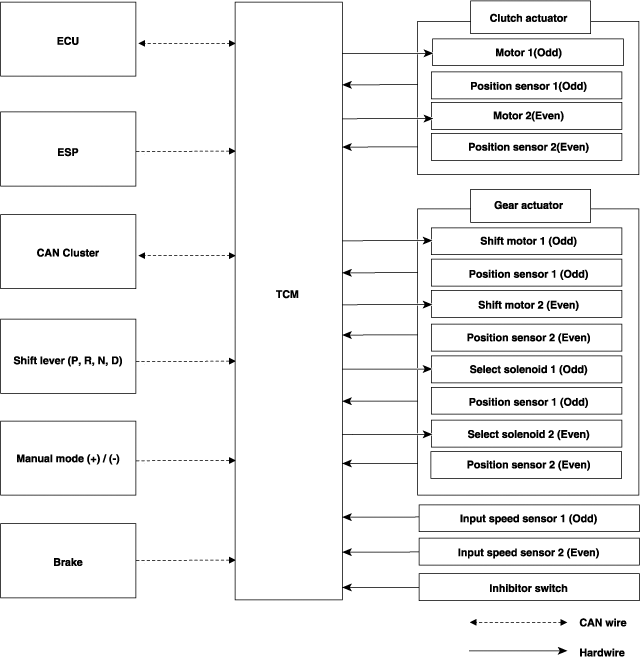

Fig 1: Dual Clutch Transmission Control System Block Diagram

G11675862

Courtesy of HYUNDAI MOTOR AMERICA
