Home >> Hyundai >> 2016 >> Tucson Limited, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Manifold Absolute Pressure Sensor (MAPS) >> Schematic Diagrams >> Circuit Diagram

Circuit Diagram

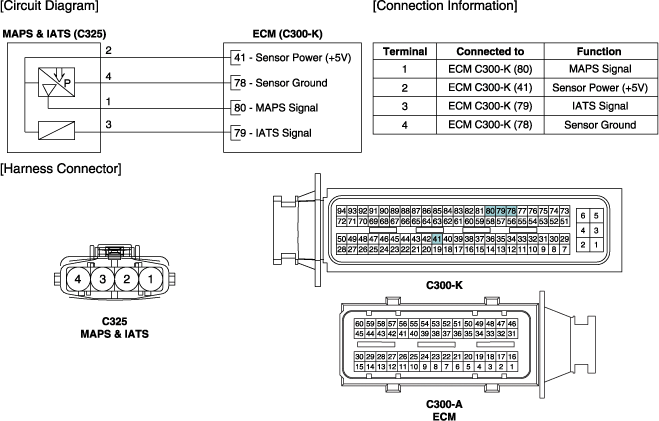

Fig 1: Manifold Absolute Pressure Sensor Schematic Diagrams

G11675661

Courtesy of HYUNDAI MOTOR AMERICA
