Circuit Diagram

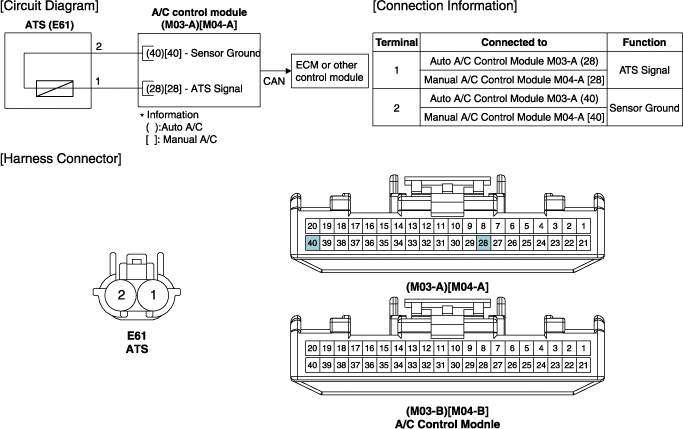

Fig 1: Ambient Temperature Sensor Schematic Diagrams

G11675668

Courtesy of HYUNDAI MOTOR AMERICA
