Section 76 (Smart Key System (Except HEV))
>>
Smart Key System
>>
Components and Components Location
>>
Component Location (2)
Component Location (2)
WARNING:
This page is about a different variant/trim than selected.

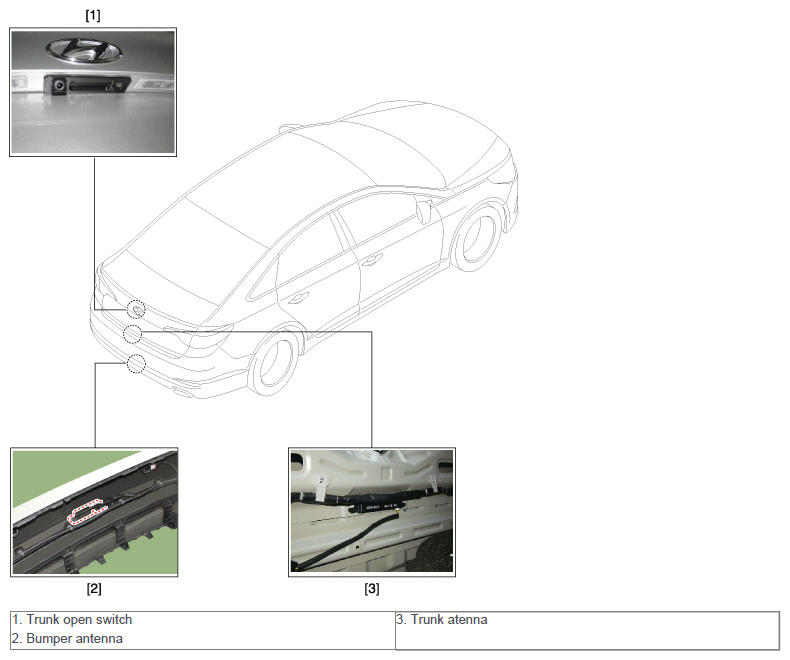

Fig 1: Smart Key Unit Components Location (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
