Signal Waveform & Data

WARNING: This page is about a different car, the 2017 Hyundai Santa Fe Sport. However, it is still accessible from the selected car via links, so may be relevant.

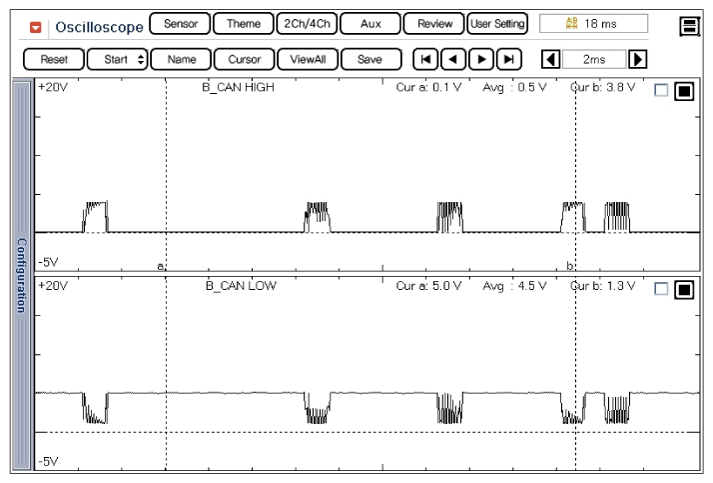

Fig 1: Screen Display - B-CAN High And Low Signal Waveform
G12050163Courtesy of HYUNDAI MOTOR AMERICA
