Smart Key System (PHEV)
>>
Smart Key Unit
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

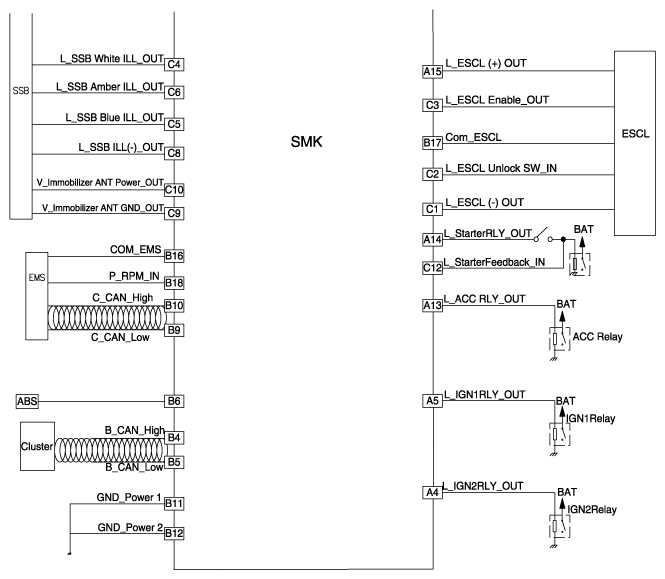

Fig 1: Smart Key Unit Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA

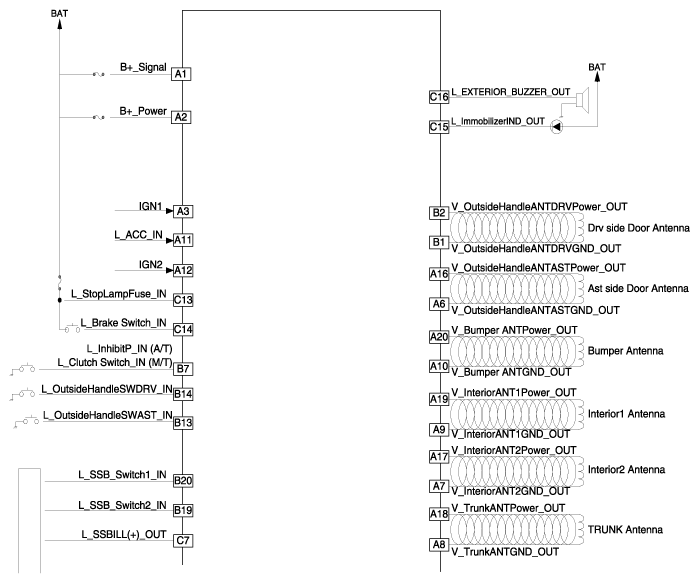

Fig 2: Smart Key Unit Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR AMERICA
