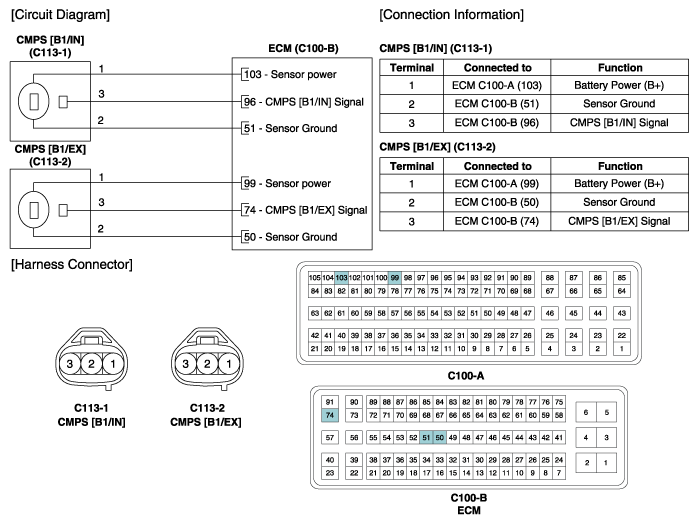

Home >> Hyundai >> 2016 >> Sonata Base >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 2.4L (Except HEV) >> Camshaft Position Sensor (CMPS) >> Schematic Diagrams >> Circuit Diagram
