[Driver Power Window Module (IMS, Front Safety)]

Fig 1: Driver Power Window Module (IMS, Front Safety) Circuit Diagram (1 Of 2)
G10567852Courtesy of HYUNDAI MOTOR AMERICA

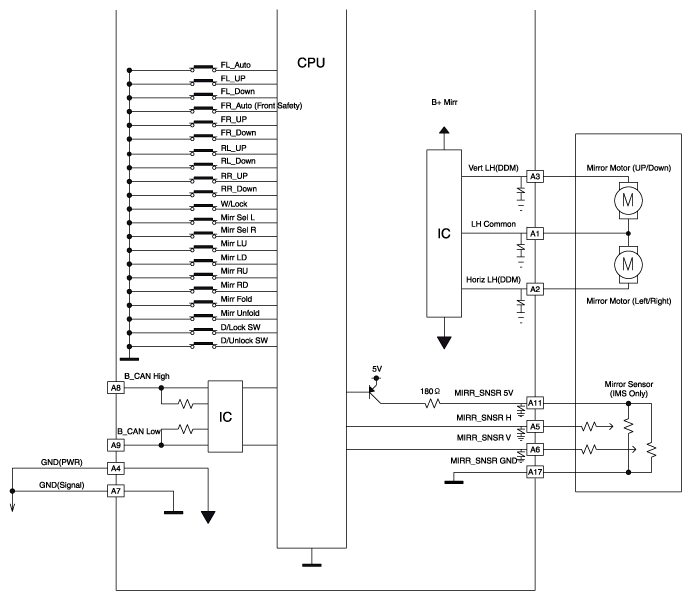

Fig 2: Driver Power Window Module (IMS, Front Safety) Circuit Diagram (2 Of 2)
G10567853Courtesy of HYUNDAI MOTOR AMERICA
