Terminal Function

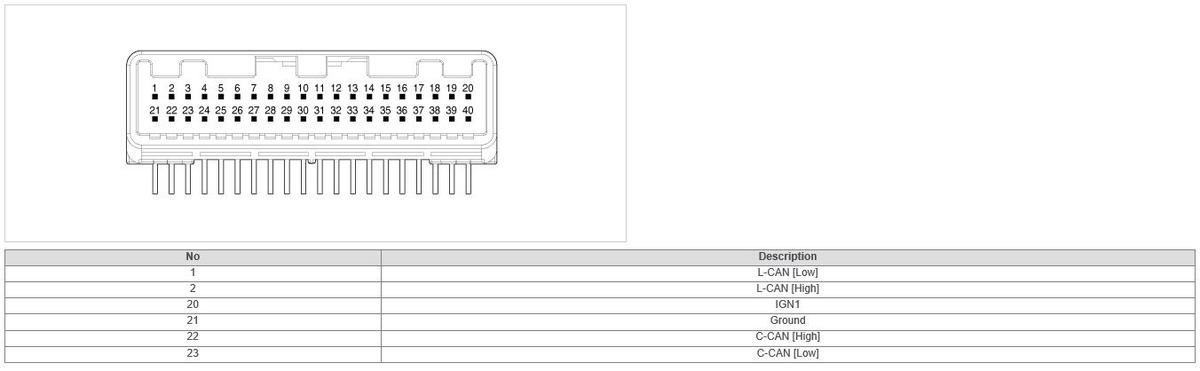

Fig 1: (ASCC) ECU - Terminal Connector End View
G00561551Courtesy of HYUNDAI MOTOR AMERICA
