Schematic Diagrams: Schematic: Notes

[EPB Type]

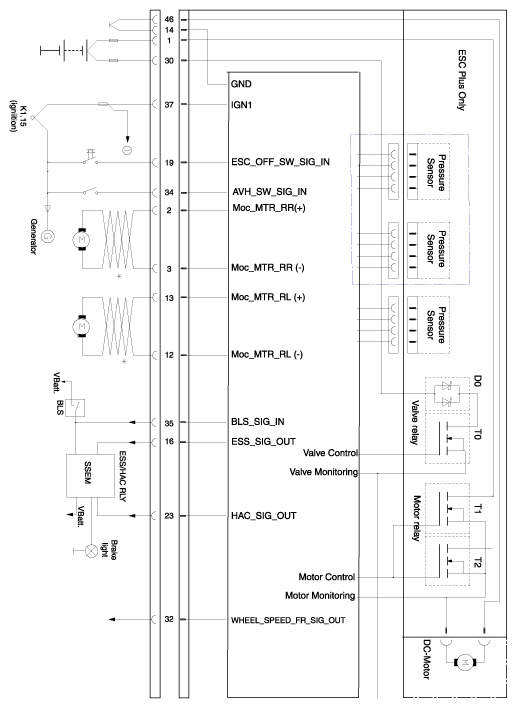

Fig 1: EPB Type Schematic Diagram (1 Of 2)
G10565520Courtesy of HYUNDAI MOTOR AMERICA

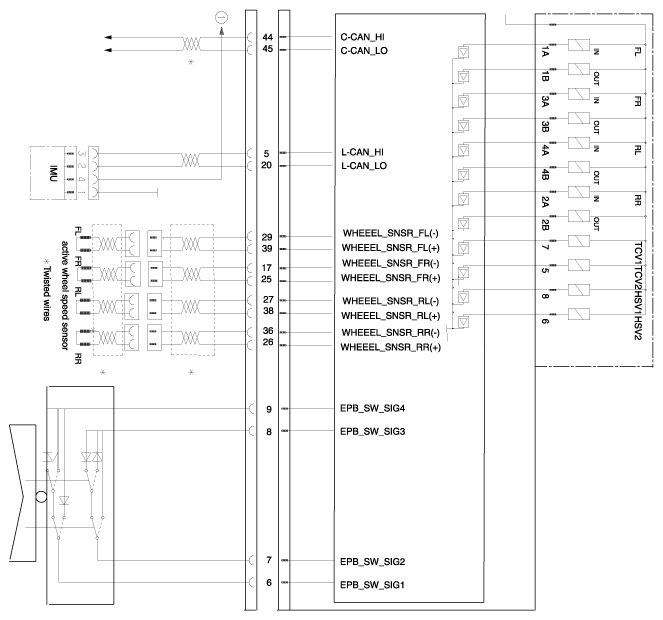

Fig 2: EPB Type Schematic Diagram (2 Of 2)
G10565521Courtesy of HYUNDAI MOTOR AMERICA

[General Type]

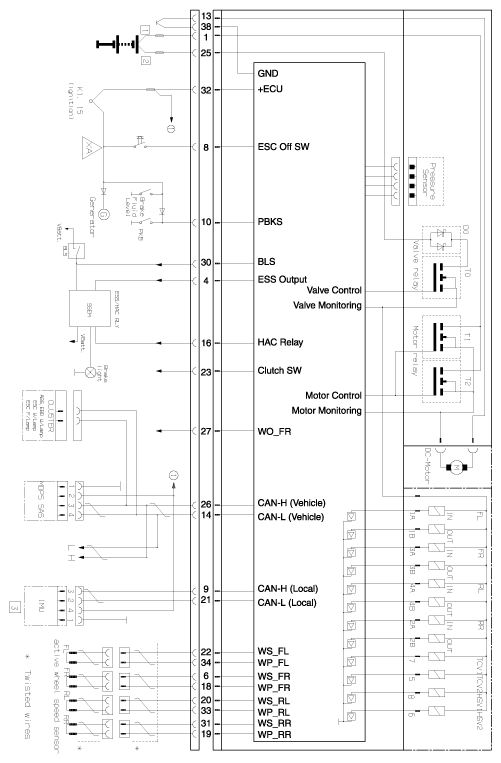

Fig 3: General Type Schematic Diagram
G10565522Courtesy of HYUNDAI MOTOR AMERICA
