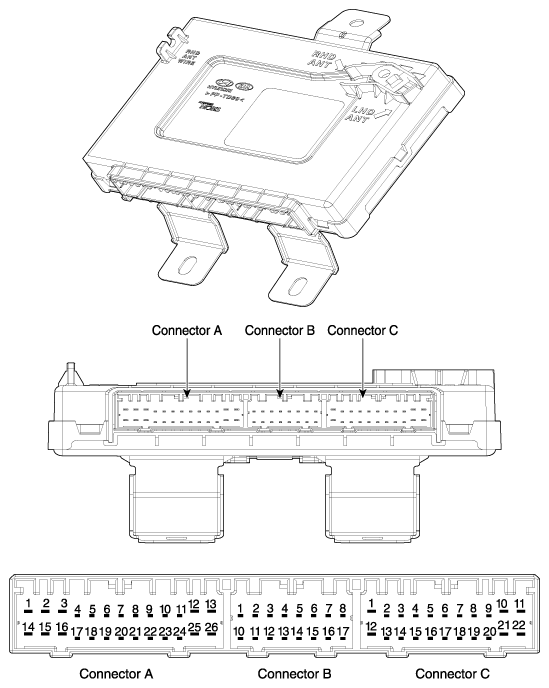

| 1 |
Room lamp_output |
GND |
Trunk release switch_input |
| 2 |
Heated handle power_IGN 2 |
- |
Brake switch_input |
| 3 |
heated handle_output |
Auto light power_output |
Fog lamp switch_input |
| 4 |
- |
Chassis CAN (Low) |
Head lamp high switch_input |
| 5 |
Safety power window enable_output |
Chassis CAN (High) |
Light switch_input |
| 6 |
- |
Wiper INT volume switch_input |
Wiper switch_input |
| 7 |
Wiper low relay_output |
Body CAN (High) |
Wiper low switch_input |
| 8 |
Key hole illumination_output |
Body CAN (Low) |
Washer switch_input |
| 9 |
- |
Auto light GND_output |
Heated handle NTC sensor_input |
| 10 |
Wiper high relay_output |
RPAS LIN Communication |
IGN 1 |
| 11 |
Courtesy lamp_output (Assist) |
- |
Battery (+) |
| 12 |
Courtesy lamp_output (Driver) |
- |
Ground |
| 13 |
Ground |
- |
heated handle switch_input |
| 14 |
Ground |
Diagnosis |
Key IN switch_input |
| 15 |
Pocket lamp_output |
PAS_input (Option) |
Rear defogger switch_input |
| 16 |
- |
AIR BAG signal_input |
RPAS off switch_input |
| 17 |
- |
|
Ket interlock switch_input |
| 18 |
Security indicator_output |
Sunroof open switch_input |
| 19 |
RPAS off switch indicator_output |
Blade position_input |
| 20 |
Assist seat belt indicator_output |
Auto light sensor_input |
| 21 |
AV Tail lamp_output |
ACC |
| 22 |
- |
IGN 2 |
| 23 |
Heated handle indicator_output |
|
| 24 |
- |
| 25 |
Key solenoid_output |
| 26 |
AT solenoid_output |
