Signal Waveform & Data

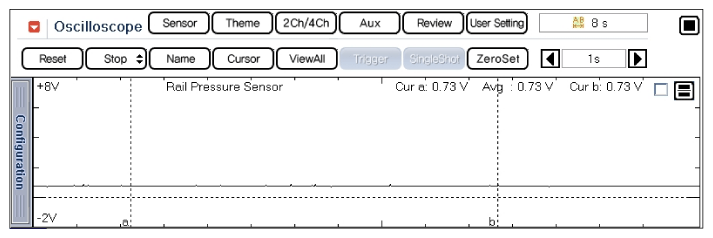

Fig 1: Screen Display - Normal Waveform Of Rail Pressure Sensor At Idle
G10580269Courtesy of HYUNDAI MOTOR AMERICA

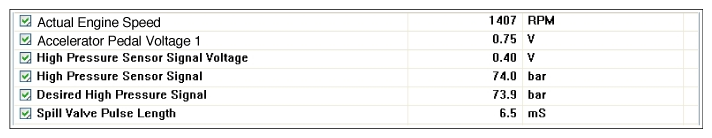

Fig 2: Screen Display - High Pressure Sensor Signal
G10580270Courtesy of HYUNDAI MOTOR AMERICA

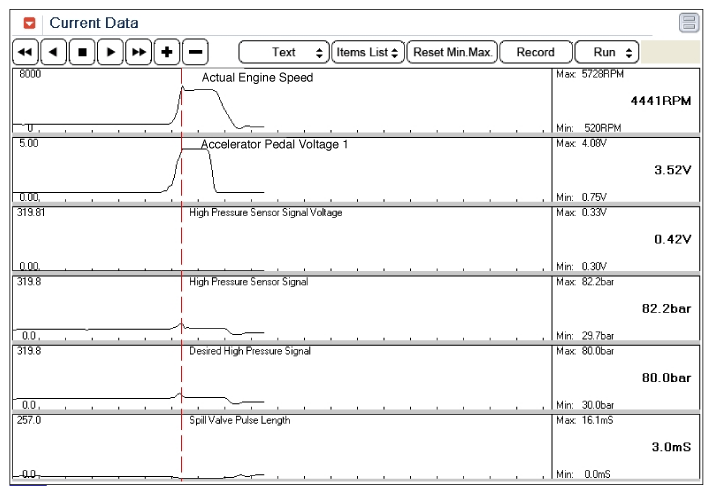

Fig 3: Screen Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G10580271Courtesy of HYUNDAI MOTOR AMERICA
