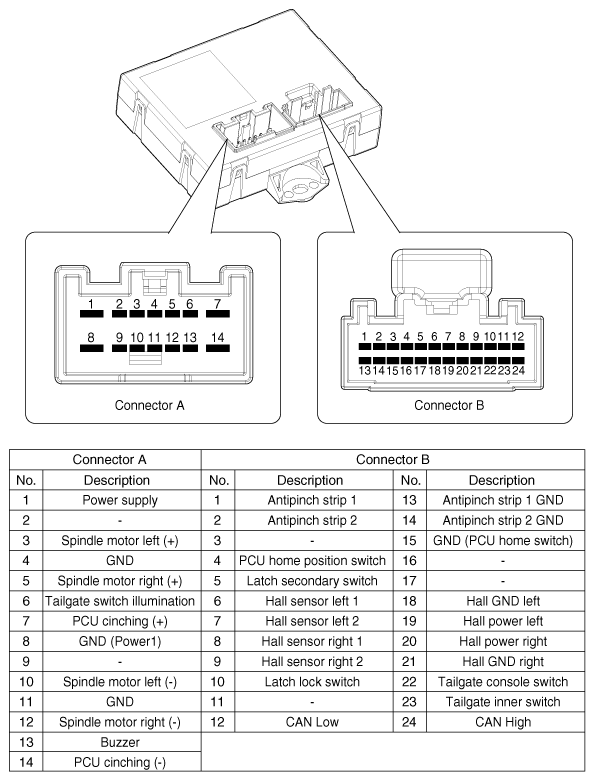

Home >> Hyundai >> 2016 >> Santa Fe XL Base >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Power Liftgate Module >> Power Liftgate Unit >> Schematic Diagrams >> Circuit Diagram
