Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "ON".
  3. Select "Current Data" mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
  4. Change shift lever to "Sports Mode".

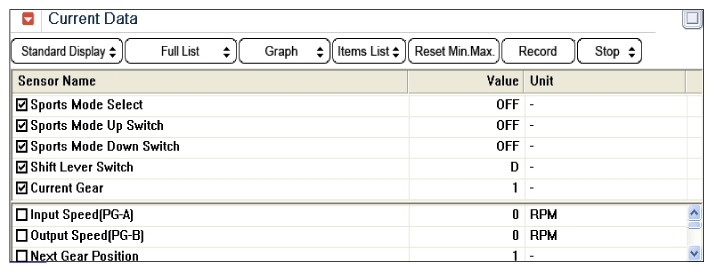

    Fig 1: Scantool Display - Current Data (D Range)
    G10587013Courtesy of HYUNDAI MOTOR AMERICA
    Fig 2: Scantool Display - Current Data (Sports Mode ON)
    G10587014Courtesy of HYUNDAI MOTOR AMERICA

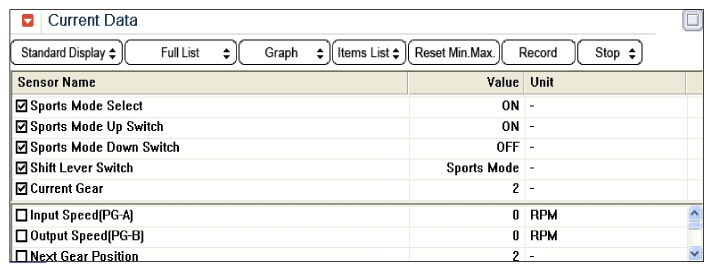

    Fig 3: Scantool Display - Current Data (Sports Mode Up Switch ON)
    G10587015Courtesy of HYUNDAI MOTOR AMERICA

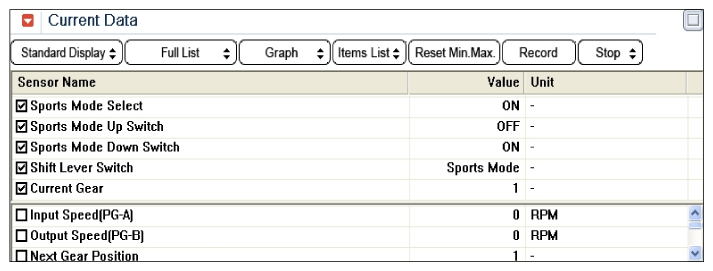

    Fig 4: Scantool Display - Current Data (Sports Mode Down Switch ON)
    G10587016Courtesy of HYUNDAI MOTOR AMERICA
  5. Is Sports Mode Switch working within specification?

    YES

    • Fault is intermittent caused by poor contact between PCM/TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.

    NO
