Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" & engine "OFF".
  3. Select "Current Data" mode and monitor "Inhibitor Switch" parameter.
  4. Change a shift lever from P-range to D-range.

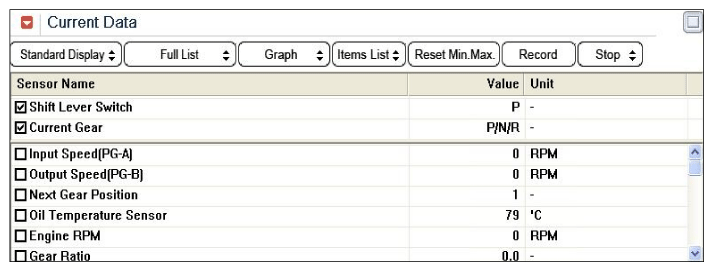

    Fig 1: Scantool Display - Shift Lever Position (P Range)
    G10586877Courtesy of HYUNDAI MOTOR AMERICA

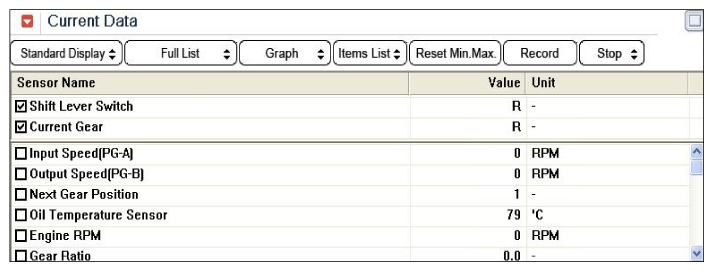

    Fig 2: Scantool Display - Shift Lever Position (R Range)
    G10586878Courtesy of HYUNDAI MOTOR AMERICA

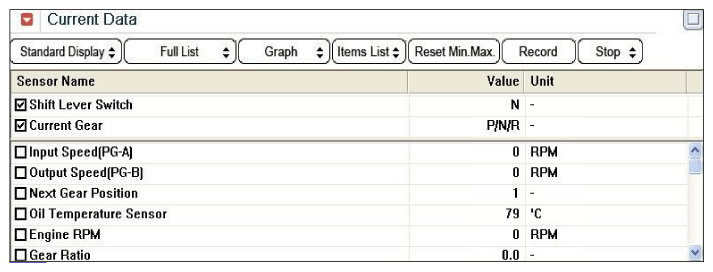

    Fig 3: Scantool Display - Shift Lever Position (N Range)
    G10586879Courtesy of HYUNDAI MOTOR AMERICA

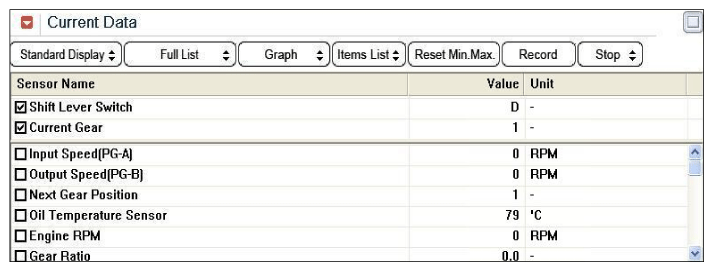

    Fig 4: Scantool Display - Shift Lever Position (D Range)
    G10586880Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the Inhibitor switch value changed in specification?

    YES

    • P0705 can be happened When Shift Cable alignment is not correct between TGS Lever and Transmission Range Sensor. so Do not replace "Inhibitor Switch" and Check the Alignment of Shift Cable.

    NO
