Block Diagram

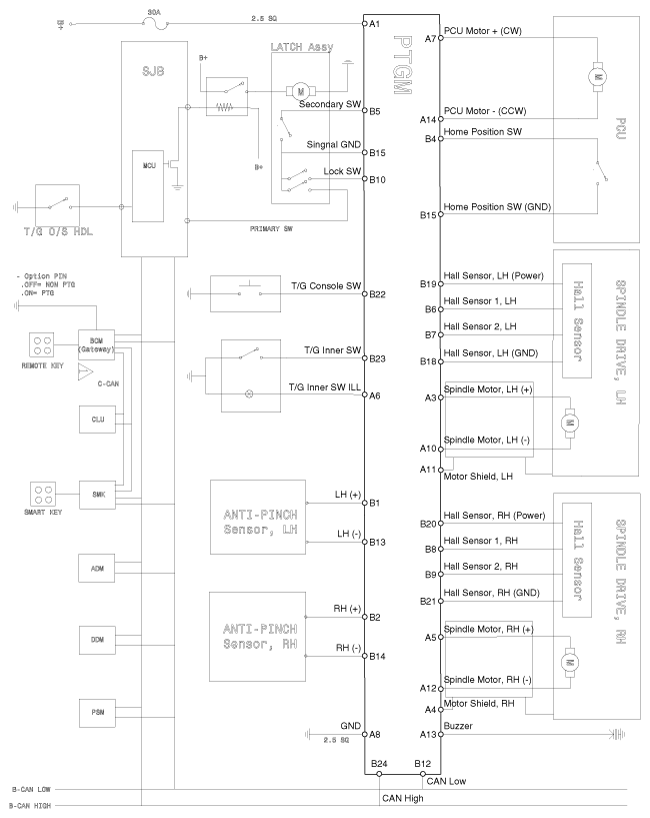

Fig 1: Power Liftgate Unit Circuit Diagram

G10584778

Courtesy of HYUNDAI MOTOR AMERICA
