Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the rear bumper.

    (Refer to: Body - "Rear Bumper").

  3. Remove the BSD unit (A) after loosening the mounting nuts.

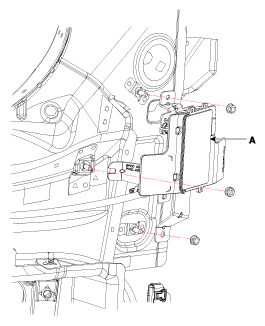

Fig 1: Identifying BSD Unit
G10585058Courtesy of HYUNDAI MOTOR AMERICA
NOTE: Take care not to separate the bracket from rear bumper when removing the BSD sensor.
