Repair Procedures: Inspection

BSD Unit Alignment

To sense the cars exactly in the next lane with the radar, the direction of the sensor and the direction of the vehicle have to align.

This is BSD unit alignment. If this alignment is not performed in graphic, the degradation of detection performance and the cause of false alarms.

The rear bumper accident vehicle and after replacing the BSD unit vehicle have to do this align especially.

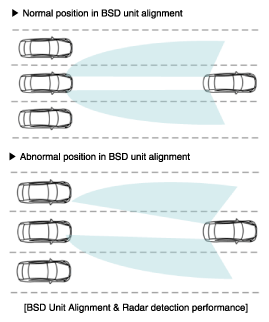

Fig 1: BSD Unit Alignment Diagram

Courtesy of HYUNDAI MOTOR AMERICA

1. The rear bumper accident vehicle and after replacing the BSD unit vehicle have to do BSD unit alignment using GDS.
2. Select the "BSD EOL coding" procedure.

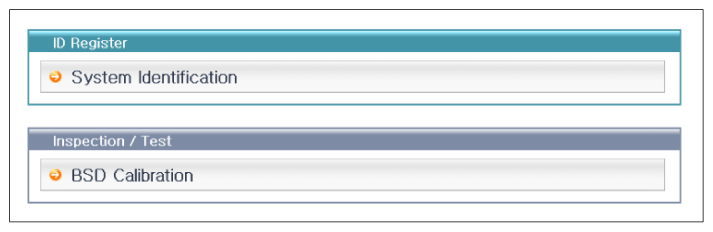

   Fig 2: Screen Display - ID Register

   Courtesy of HYUNDAI MOTOR AMERICA
3. Complete the alignment procedure according to GDS screen message.

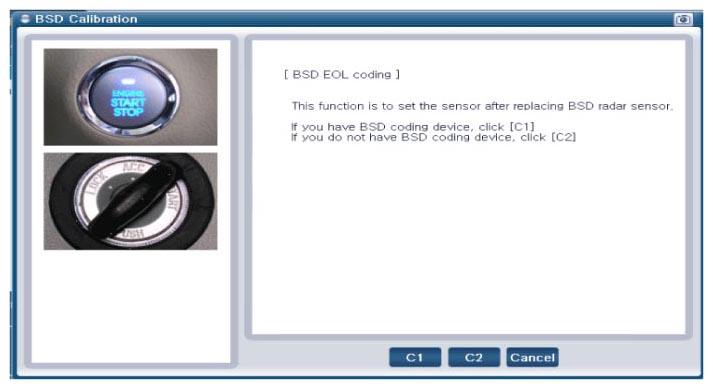

Fig 3: Screen Display - BSD EOL Coding (1 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA

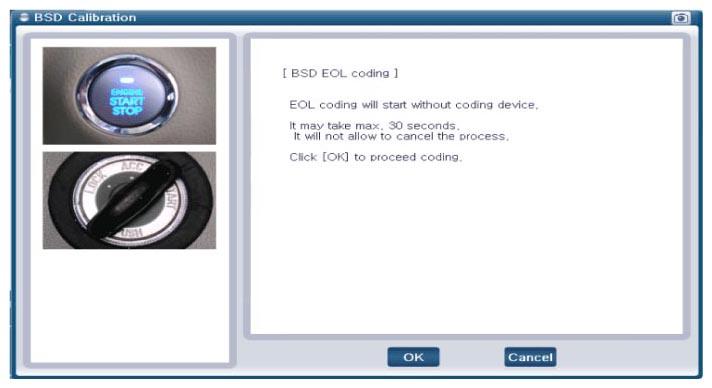

Fig 4: Screen Display - BSD EOL Coding (2 Of 2)

Courtesy of HYUNDAI MOTOR AMERICA
