Circuit Diagram

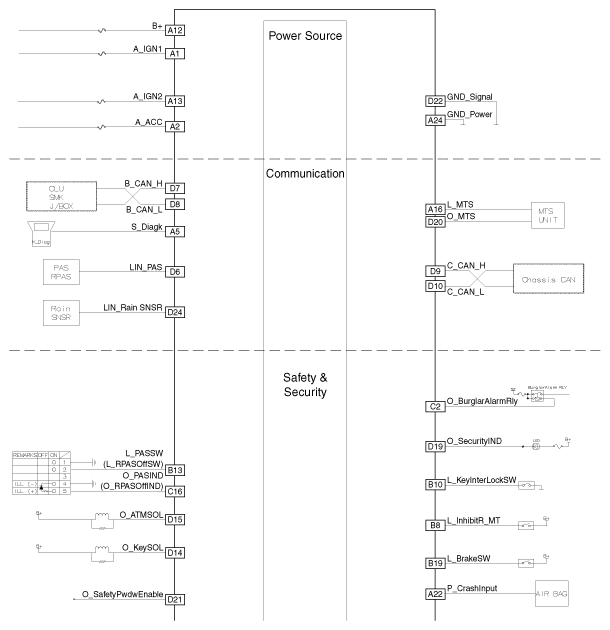

Fig 1: BCM (Body Control Module) Circuit Diagram (1 Of 3)
G10584526Courtesy of HYUNDAI MOTOR AMERICA

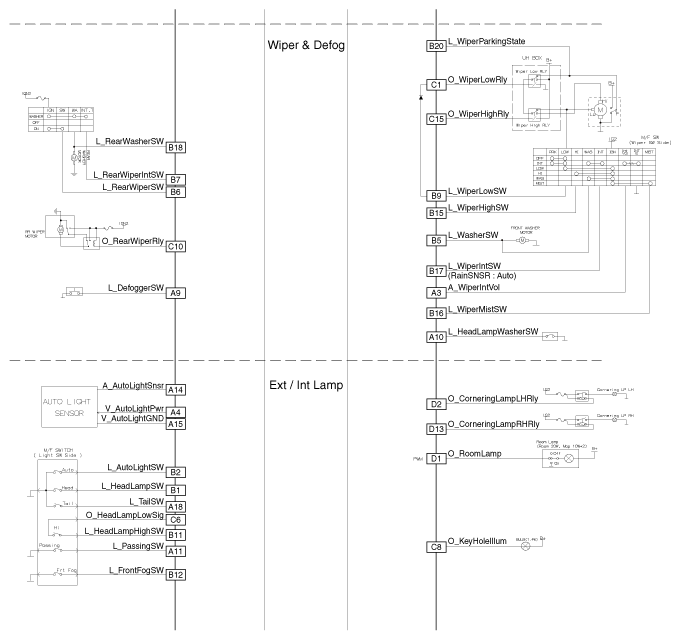

Fig 2: BCM (Body Control Module) Circuit Diagram (2 Of 3)
G10584527Courtesy of HYUNDAI MOTOR AMERICA

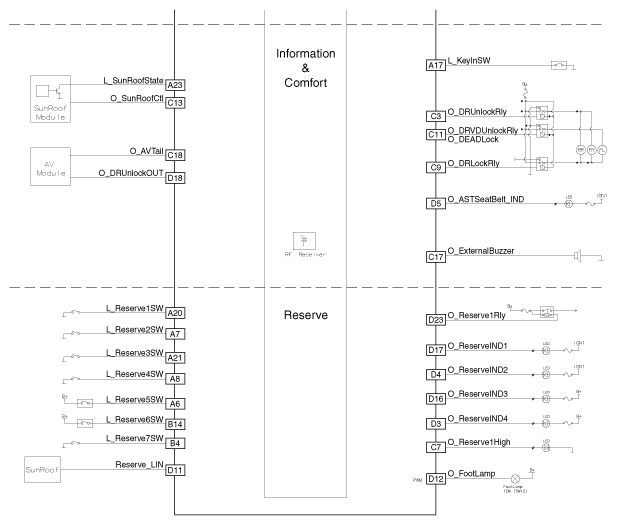

Fig 3: BCM (Body Control Module) Circuit Diagram (3 Of 3)
G10584528Courtesy of HYUNDAI MOTOR AMERICA
