Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

Fig 1: Data Link Connector Location (16 Pins)
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "CODE SAVING"

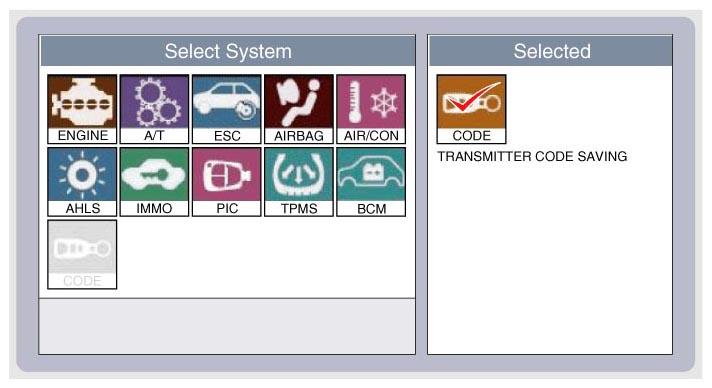

Fig 2: Screen Display - Transmitter Code Saving
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be displayed in graphic.

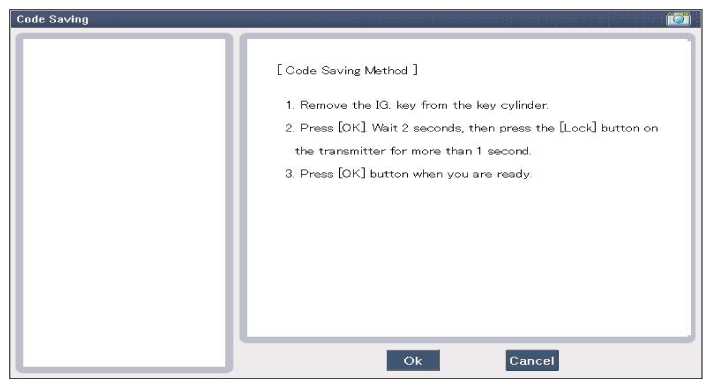

Fig 3: Screen Display - Code Saving Method
Courtesy of HYUNDAI MOTOR AMERICA
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

Fig 4: Screen Display - Code Saving Method (1 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Screen Display - Code Saving Method (2 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Screen Display - Code Saving Method (3 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

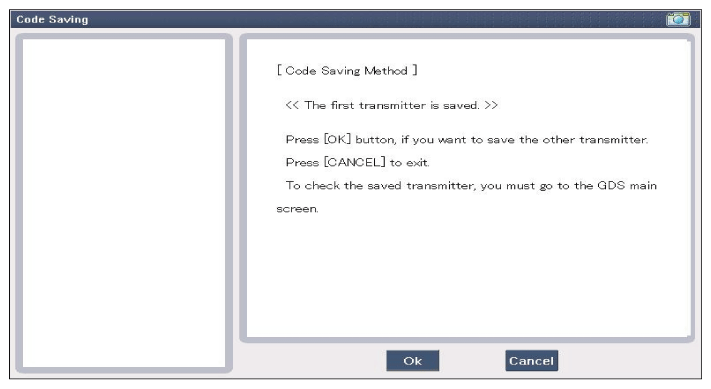

Fig 7: Screen Display - Code Saving Method (4 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

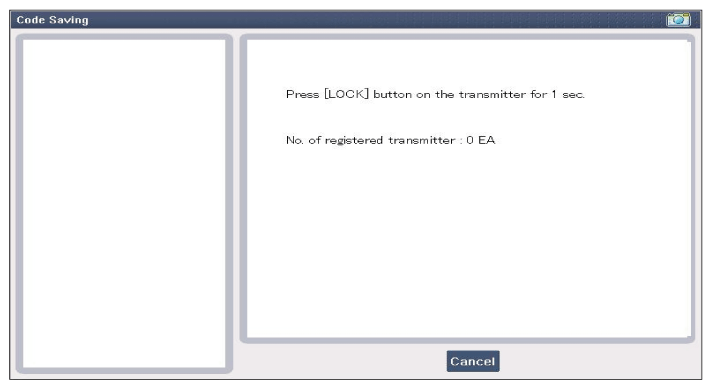

Fig 8: Screen Display - Code Saving Method (5 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

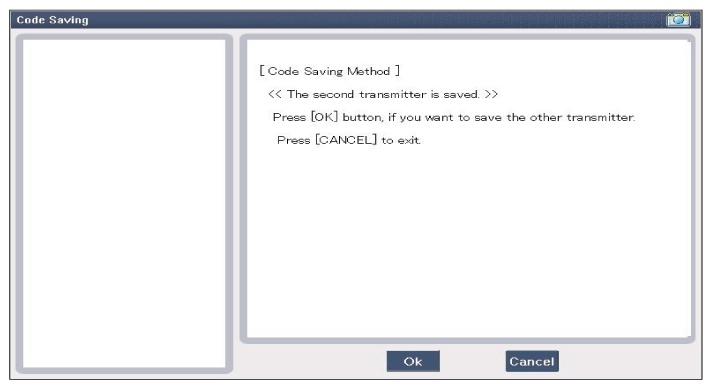

Fig 9: Screen Display - Code Saving Method (6 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

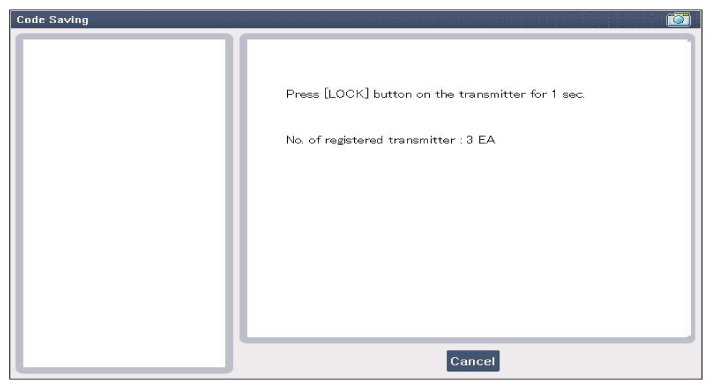

Fig 10: Screen Display - Code Saving Method (7 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

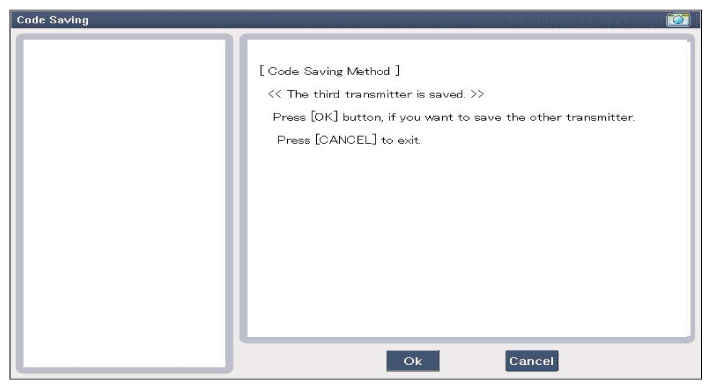

Fig 11: Screen Display - Code Saving Method (8 Of 9)
Courtesy of HYUNDAI MOTOR AMERICA

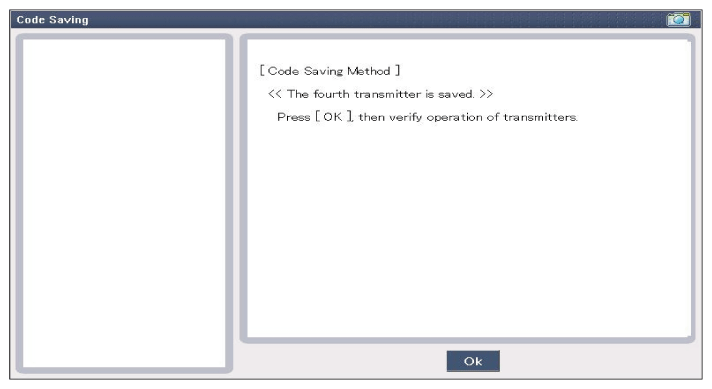

Fig 12: Screen Display - Code Saving Method (9 Of 9)
