Component Inspection

■ Actuator Test Check

1. Connect GDS to Data Link Connector (DLC)
2. IG Key "ON"
3. Perform Actuator Test  with GDS.

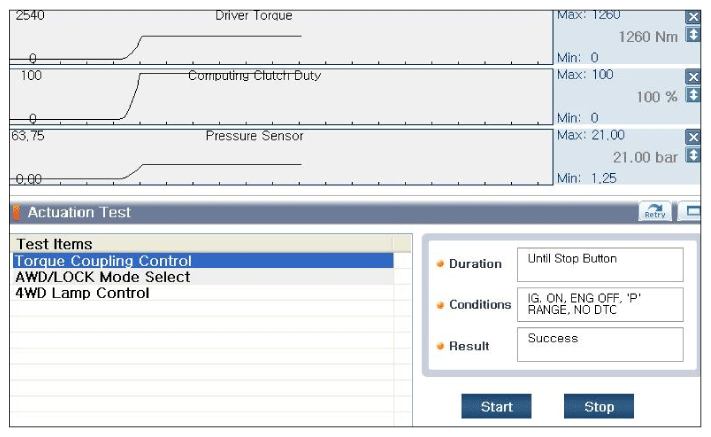

   Fig 1: Scantool Display - Actuation Test

   Courtesy of HYUNDAI MOTOR AMERICA
4. Are any DTC's present?

   YES

   • Substitute with a known-good "Coupling" and check for proper operation. If the problem is corrected, replace "Coupling" and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

   NO

   • Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
