Monitor GDS Data

Connect GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Selet "Currnet Data" mode and monitor "SPORTS MODE SELECT S/W, SPORTS MODE UP S/W, SPORTS MODE DOWN S/W" parameters.
Change shft lever to "Sports Mode".

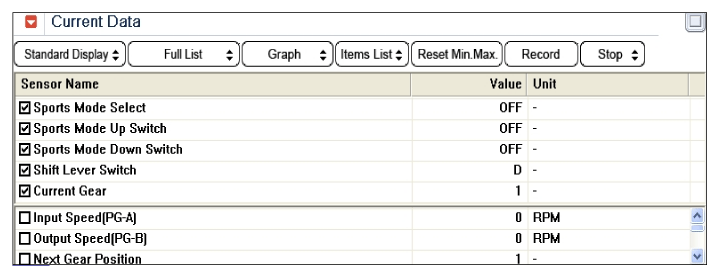

Fig 1: Display - Sports Mode Parameters Current Data Screen (Sports Mode OFF)
Courtesy of HYUNDAI MOTOR AMERICA

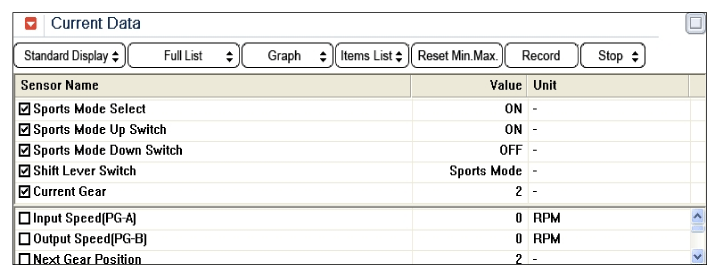

Fig 2: Display - Sports Mode Parameters Current Data Screen (Sports Mode ON)
Courtesy of HYUNDAI MOTOR AMERICA

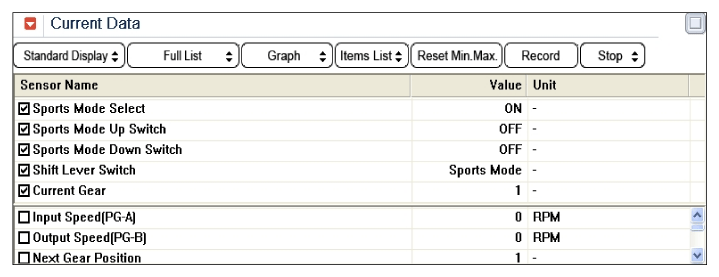

Fig 3: Display - Sports Mode Parameters Current Data Screen (Sports Mode ON)
Courtesy of HYUNDAI MOTOR AMERICA

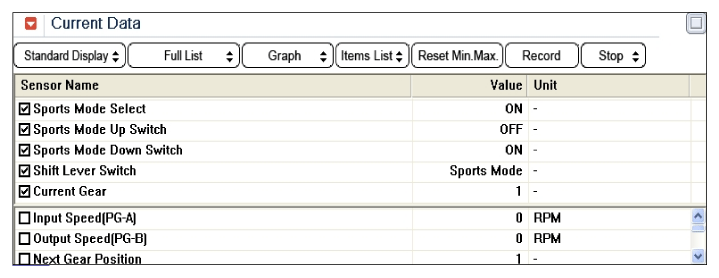

Fig 4: Display - Sports Mode Parameters Current Data Screen (Sports Mode ON)
Courtesy of HYUNDAI MOTOR AMERICA
Is Sports Mode Switch working within specification?
YES
- Fault is intermittent caused by poor contact between PCM/TCM and Sensor, and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION VEHICLE REPAIR " procedure.
NO
- Go to "Terminal and Connector Inspection" procedure below.
