Driver Power Window Switch

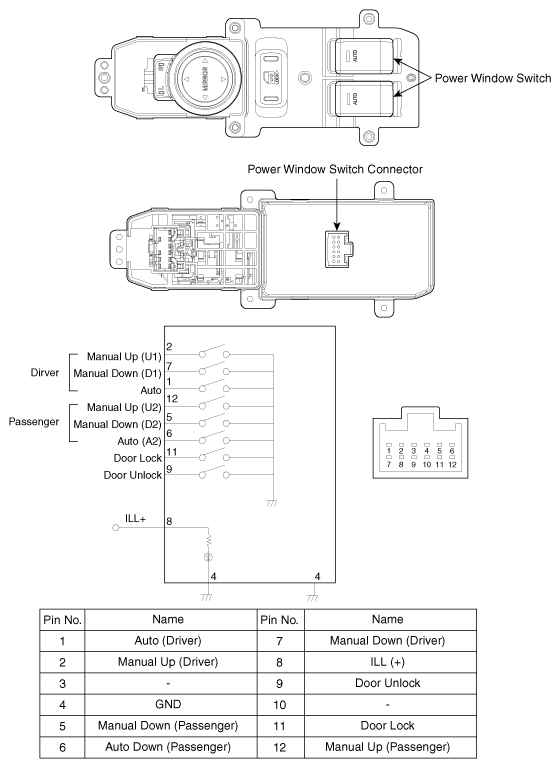

Fig 1: Driver Power Window Switch Circuit Diagram

G10490373

Courtesy of HYUNDAI MOTOR AMERICA
