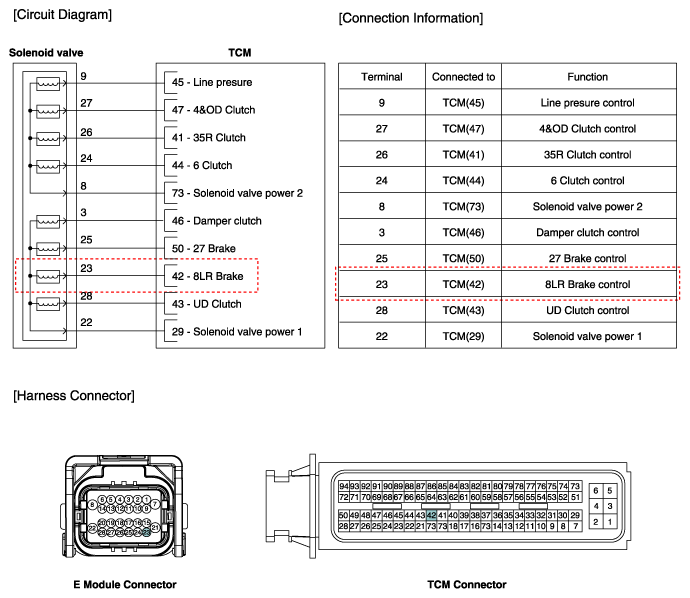

Home >> Hyundai >> 2016 >> Genesis 5.0 >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transmission Control System >> 8LR Brake Control Solenoid Valve >> Schematic Diagrams >> Circuit Diagram
