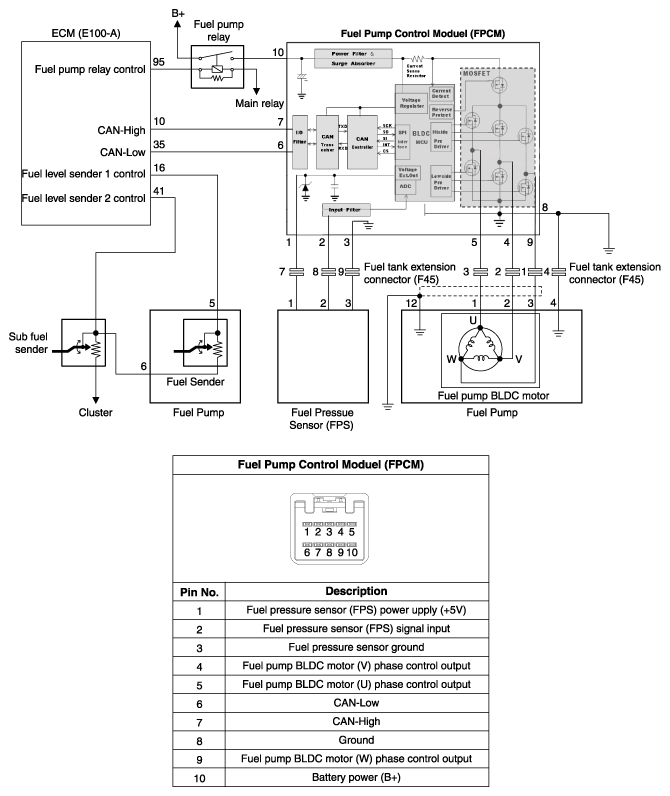

Home >> Hyundai >> 2016 >> Genesis 5.0 >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel Delivery System - 5.0L >> Fuel Pump Control Module (FPCM) >> Schematic Diagrams >> Circuit Diagram
