Rear Power Window Switch

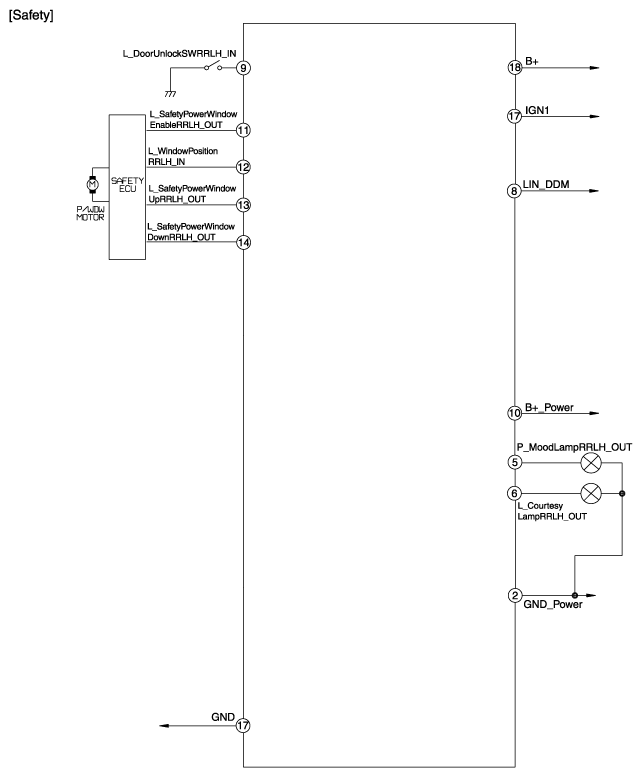

Fig 1: Rear Power Window Switch Circuit Diagram - Safety
G10454468Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: Rear Power Window Switch Circuit Diagram - Manual
G10454469Courtesy of HYUNDAI MOTOR AMERICA
