Assist Power Window Switch

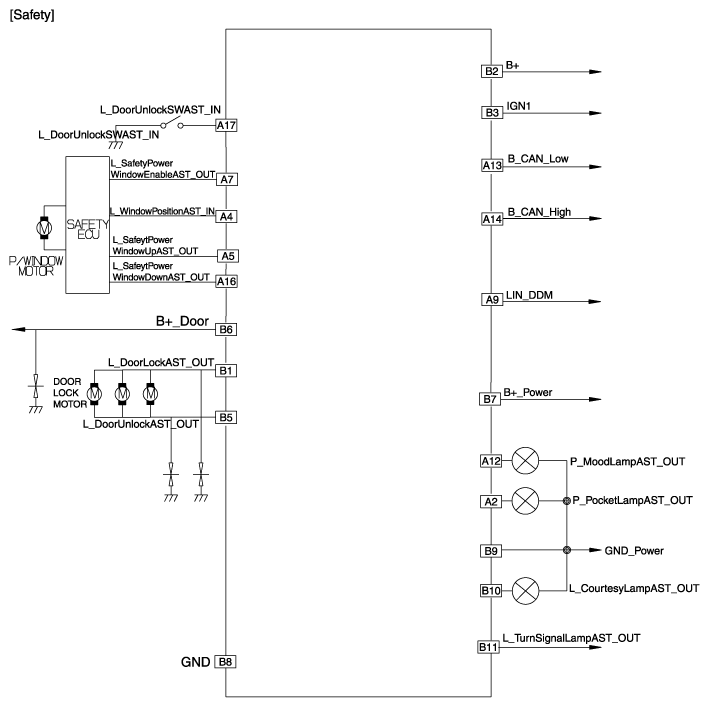

Fig 1: Assist Power Window Switch Circuit Diagram

G10454467

Courtesy of HYUNDAI MOTOR AMERICA
