Section 4 (Smart Cruise Control System - 5.0L)
>>
Smart Cruise Control Unit
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

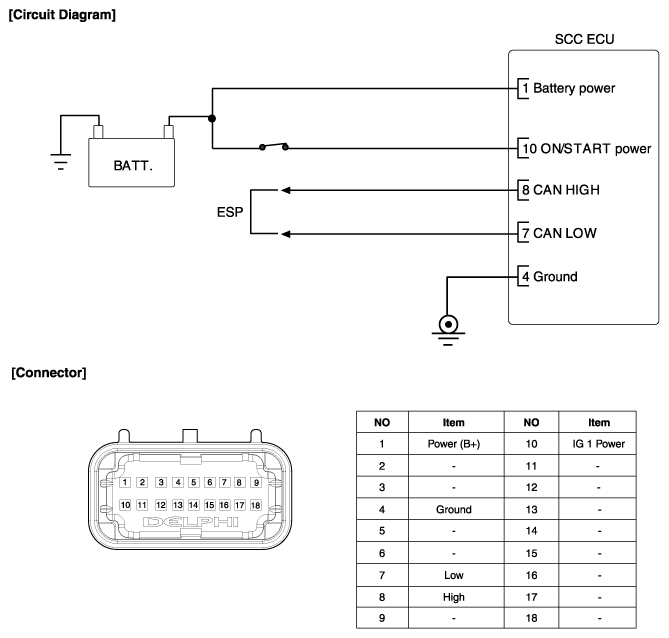

Fig 1: SSC ECU Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
