Component Location

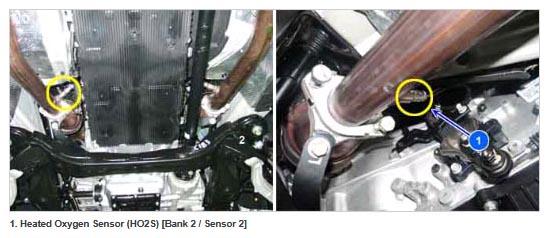

Fig 1: Heated Oxygen Sensor (HO2S; Bank 2/Sensor 2)
G10471414Courtesy of HYUNDAI MOTOR AMERICA
