Automatic Transmission System Diagnosis
>>
DTC P0721: Output Speed Sensor Circuit Range/Performance
>>
Specification
>>
Signal Waveform & Data
Signal Waveform & Data
Input/Output Speed Sensor: 2PIN (Supplied Power: 9V, Waveform of grating: 0.7 ~ 1.4V)

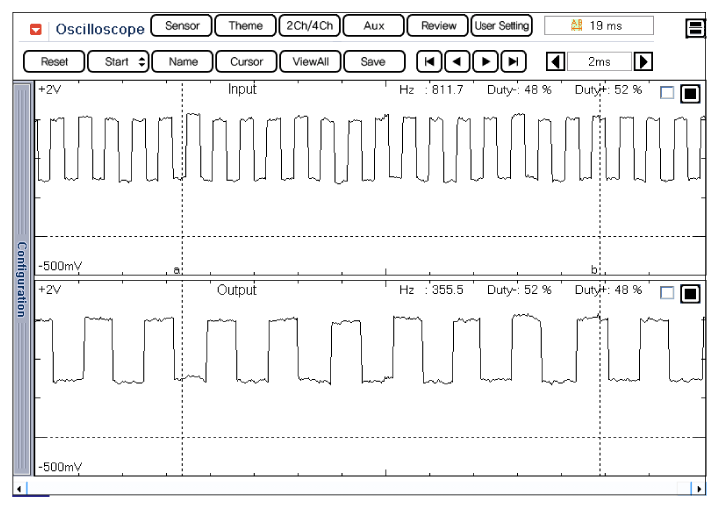

Fig 1: Screen Display - Signal Waveform Of Input/Output Speed Sensor (D Range 1st)
Courtesy of HYUNDAI MOTOR AMERICA

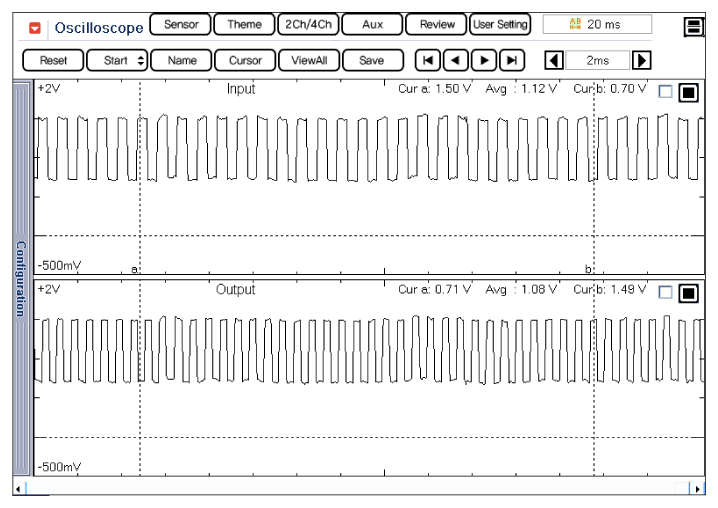

Fig 2: Screen Display - Signal Waveform Of Input/Output Speed Sensor (D Range 4th)
Courtesy of HYUNDAI MOTOR AMERICA
