Smart Junction Box LH Connector End View (I/P-LHE)

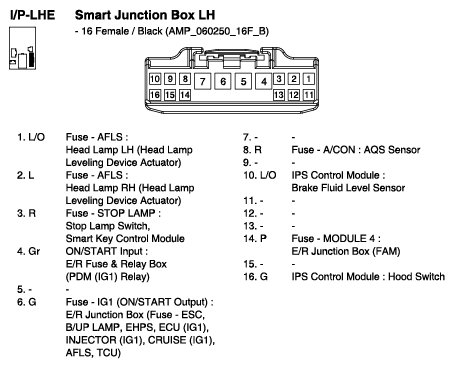

Fig 1: Smart Junction Box LH Connector End View (I/P-LHE)

G10770256

Courtesy of HYUNDAI MOTOR AMERICA
