Component Location

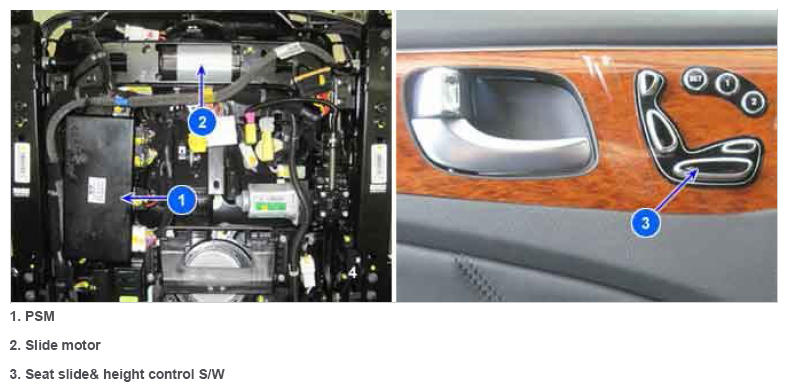

Fig 1: Power Seat Module (PSM), Slide Motor, Seat Slide And Height Control S/W Component Locations

G10393885

Courtesy of HYUNDAI MOTOR AMERICA
